SA77減速機電機功率：SA77Y0.12KW,SA77Y0.18KW,SA77Y0.25KW,SA77Y0.37KW,SA77Y0.55KW,SA77Y0.75KW,SA77Y1.1KW,SA77Y1.5KW,SA77Y2.2KW,SA77Y3KW,SA77Y4KW,SA77Y5.5KW,SA77Y7.5KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

SA77直角減速機減速比：1：256.47減速器,1:225.26減速器,1:214減速器,1:189.09減速器,1:161.6減速器,1:148.15減速器,1:130減速器,1:123.3減速器,1:107.83減速器,1:97.14減速器,1:85.22減速器,1:75.2減速器,1:75.09減速器,1:71.33減速器,1:66.67減速器,1:63.03減速器,1:56.92減速器,1:53.87減速器,1:49.38減速器,1:43.33減速器,1:41.07減速器,1:35.94減速器,1:32.38減速器,1:28.41減速器,1:25.07減速器,1:22.89減速器,1:22.22減速器,1:20.99減速器,1:18.97減速器,1:18.42減速器,1:17.45減速器,1:15.28減速器,1:13.76減速器,1:12.07減速器,1:10.65減速器,1:9.44減速器,1:8.06減速器

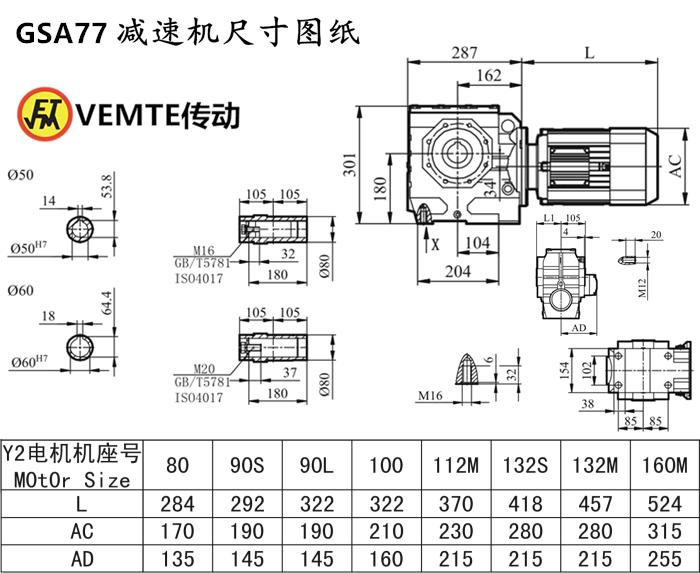

SA系列減速器SA77減速機安裝尺寸：輸出孔+鍵Φ64.4（可定做），高301*寬210*長287

SA77減速機輸出轉數：5.50rpm減速機,6.2rpm減速機,6.5rpm減速機,7.4rpm減速機,8.7rpm減速機,9.4rpm減速機,11rpm減速機,13rpm減速機,14rpm減速機,16rpm減速機,19rpm減速機,20rpm減速機,21rpm減速機,22rpm減速機,25rpm減速機,26rpm減速機,28rpm減速機,32rpm減速機,34rpm減速機,39rpm減速機,43rpm減速機,49rpm減速機,56rpm減速機,61rpm減速機,63rpm減速機,67rpm減速機,74rpm減速機,76rpm減速機,80rpm減速機,92rpm減速機,102rpm減速機,116rpm減速機,131rpm減速機,148rpm減速機,174rpm減速機。（以上rpm/min數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

SA77渦輪減速機輸出扭矩：減速箱680Nm,減速箱705Nm,減速箱710Nm,減速箱720Nm,減速箱725Nm,減速箱930Nm,減速箱980Nm,減速箱990Nm,減速箱1020Nm,減速箱1040Nm,減速箱1050Nm,減速箱1070Nm,減速箱1090Nm,減速箱1100Nm,減速箱1140Nm,減速箱1170Nm,減速箱1200Nm,減速箱1210Nm,減速箱1240Nm,減速箱1260Nm,減速箱1270N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）

SA77減速機電機型號：SA77DV71S4,SA77DV80S4,SA77DV90S4,SA77DV100S4,SA77DV112S4,SA77DV132S4,SA77DT71S4,SA77DT80S4,SA77DT90S4,SA77DT100S4,SA77DT112S4,SA77DT132S4,SA77DRE71S4,SA77DRE80S4,SA77DRE90S4,SA77DRE100S4,SA77DRE112S4,SA77DRE132S4,SA77DRS71S4,SA77DRS80S4,SA77DRS90S4,SA77DRS100S4,SA77DRS112S4,SA77DRS132S4,SA77Y71S4,SA77Y80S4,SA77Y90S4,SA77Y100S4,SA77Y112S4,SA77Y132S4,SA77DV71M4,SA77DV80M4,SA77DV90M4,SA77DV100M4,SA77DV112M4,SA77DV132M4,SA77DT71M4,SA77DT80M4,SA77DT90M4,SA77DT100M4,SA77DT112M4,SA77DT132M4,SA77DRE71M4,SA77DRE80M4,SA77DRE90M4,SA77DRE100M4,SA77DRE112M4,SA77DRE132M4,SA77DRS71M4,SA77DRS80M4,SA77DRS90M4,SA77DRS100M4,SA77DRS112M4,SA77DRS132M4,SA77Y71M4,SA77Y80M4,SA77Y90M4,SA77Y100M4,SA77Y112M4,SA77Y132M4,SA77DV71L4,SA77DV80L4,SA77DV90L4,SA77DV100L4,SA77DV112L4,SA77DV132L4,SA77DT71L4,SA77DT80L4,SA77DT90L4,SA77DT100L4,SA77DT112L4,SA77DT132L4,SA77DRE71L4,SA77DRE80L4,SA77DRE90L4,SA77DRE100L4,SA77DRE112L4,SA77DRE132L4,SA77DRS71L4,SA77DRS80L4,SA77DRS90L4,SA77DRS100L4,SA77DRS112L4,SA77DRS132L4,SA77Y71L4,SA77Y80L4,SA77Y90L4,SA77Y100L4,SA77Y112L4,SA77Y132L4

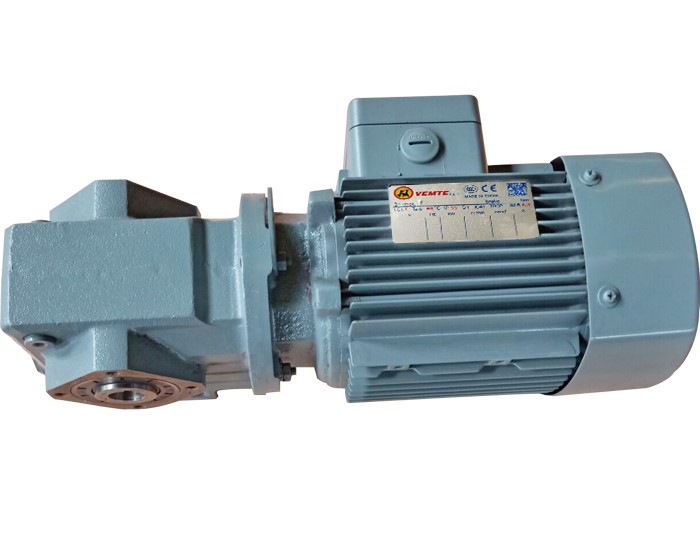

SA77減速機配各種電機實物圖：

SA77減速機生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://xinjiangqinglv.cn/product/list-saxiliejiansuji-cn.html

推薦類似型號：減速機SAF77
