減速機SAF77電機功率：自鎖減速機

SAF77Y0.12KW,SAF77Y0.18KW,SAF77Y0.25KW,SAF77Y0.37KW,SAF77Y0.55KW,SAF77Y0.75KW,SAF77Y1.1KW,SAF77Y1.5KW,SAF77Y2.2KW,SAF77Y3KW,SAF77Y4KW,SAF77Y5.5KW,SAF77Y7.5KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

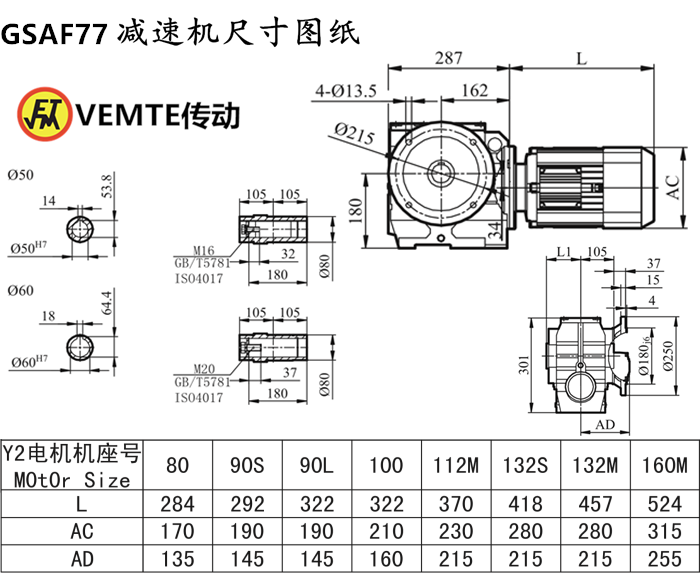

減速機SAF77安裝尺寸：輸出孔+鍵Φ64.4（可定做），高301*寬251（帶輸出法蘭）*長287

蝸輪蝸桿減速機SAF77減速比：

減速箱256.47比,減速箱225.26比,減速箱214比,減速箱189.09比,減速箱161.6比,減速箱148.15比,減速箱130比,減速箱123.3比,減速箱107.83比,減速箱97.14比,減速箱85.22比,減速箱75.2比,減速箱75.09比,減速箱71.33比,減速箱66.67比,減速箱63.03比,減速箱56.92比,減速箱53.87比,減速箱49.38比,減速箱43.33比,減速箱41.07比,減速箱35.94比,減速箱32.38比,減速箱28.41比,減速箱25.07比,減速箱22.89比,減速箱22.22比,減速箱20.99比,減速箱18.97比,減速箱18.42比,減速箱17.45比,減速箱15.28比,減速箱13.76比,減速箱12.07比,減速箱10.65比,減速箱9.44比,減速箱8.06比

減速機SAF77輸出轉數：

5.50轉減速器,6.2轉減速器,6.5轉減速器,7.4轉減速器,8.7轉減速器,9.4轉減速器,11轉減速器,13轉減速器,14轉減速器,16轉減速器,19轉減速器,20轉減速器,21轉減速器,22轉減速器,25轉減速器,26轉減速器,28轉減速器,32轉減速器,34轉減速器,39轉減速器,43轉減速器,49轉減速器,56轉減速器,61轉減速器,63轉減速器,67轉減速器,74轉減速器,76轉減速器,80轉減速器,92轉減速器,102轉減速器,116轉減速器,131轉減速器,148轉減速器,174轉減速器。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

減速機SAF77輸出扭矩：

680Nm,減速機705Nm,減速機710Nm,減速機720Nm,減速機725Nm,減速機930Nm,減速機980Nm,減速機990Nm,減速機1020Nm,減速機1040Nm,減速機1050Nm,減速機1070Nm,減速機1090Nm,減速機1100Nm,減速機1140Nm,減速機1170Nm,減速機1200Nm,減速機1210Nm,減速機1240Nm,減速機1260Nm,減速機1270N.m渦輪減速箱。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速器型號加大,或者兩個減速機組合使用）

減速機SAF77電機型號：SAF77DV71S4,SAF77DV80S4,SAF77DV90S4,SAF77DV100S4,SAF77DV112S4,SAF77DV132S4,SAF77DT71S4,SAF77DT80S4,SAF77DT90S4,SAF77DT100S4,SAF77DT112S4,SAF77DT132S4,SAF77DRE71S4,SAF77DRE80S4,SAF77DRE90S4,SAF77DRE100S4,SAF77DRE112S4,SAF77DRE132S4,SAF77DRS71S4,SAF77DRS80S4,SAF77DRS90S4,SAF77DRS100S4,SAF77DRS112S4,SAF77DRS132S4,SAF77Y71S4,SAF77Y80S4,SAF77Y90S4,SAF77Y100S4,SAF77Y112S4,SAF77Y132S4,SAF77DV71M4,SAF77DV80M4,SAF77DV90M4,SAF77DV100M4,SAF77DV112M4,SAF77DV132M4,SAF77DT71M4,SAF77DT80M4,SAF77DT90M4,SAF77DT100M4,SAF77DT112M4,SAF77DT132M4,SAF77DRE71M4,SAF77DRE80M4,SAF77DRE90M4,SAF77DRE100M4,SAF77DRE112M4,SAF77DRE132M4,SAF77DRS71M4,SAF77DRS80M4,SAF77DRS90M4,SAF77DRS100M4,SAF77DRS112M4,SAF77DRS132M4,SAF77Y71M4,SAF77Y80M4,SAF77Y90M4,SAF77Y100M4,SAF77Y112M4,SAF77Y132M4,SAF77DV71L4,SAF77DV80L4,SAF77DV90L4,SAF77DV100L4,SAF77DV112L4,SAF77DV132L4,SAF77DT71L4,SAF77DT80L4,SAF77DT90L4,SAF77DT100L4,SAF77DT112L4,SAF77DT132L4,SAF77DRE71L4,SAF77DRE80L4,SAF77DRE90L4,SAF77DRE100L4,SAF77DRE112L4,SAF77DRE132L4,SAF77DRS71L4,SAF77DRS80L4,SAF77DRS90L4,SAF77DRS100L4,SAF77DRS112L4,SAF77DRS132L4,SAF77Y71L4,SAF77Y80L4,SAF77Y90L4,SAF77Y100L4,SAF77Y112L4,SAF77Y132L4

減速機SAF77配各種電機實物圖：

GSAF系列減速電機廠家SAF77生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://xinjiangqinglv.cn/product/list-safxiliejiansuji-cn.html

推薦類似型號：S77減速機
