減速機SAF67電機功率：

SAF67Y0.12KW,SAF67Y0.18KW,SAF67Y0.25KW,SAF67Y0.37KW,SAF67Y0.55KW,SAF67Y0.75KW,SAF67Y1.1KW,SAF67Y1.5KW,SAF67Y2.2KW,SAF67Y3KW,SAF67Y4KW,SAF67Y5.5KW。（可配變頻電機，剎車電機，防爆電機，伺服電機減速機，交流電機，直流電機，三相電機，單相電機）。

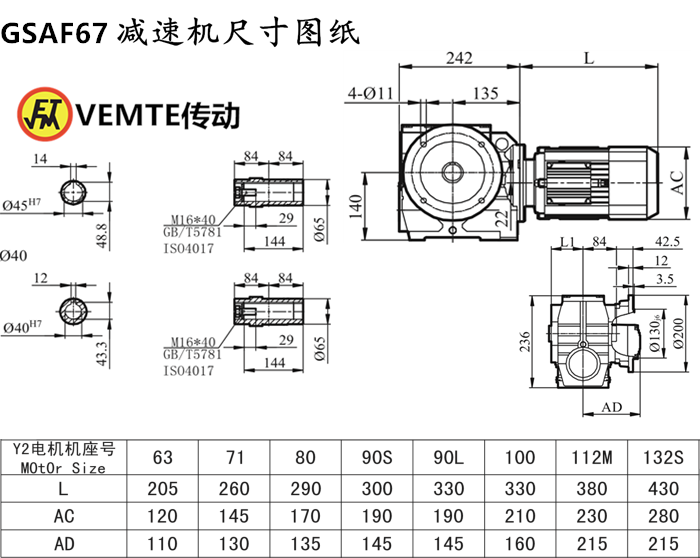

減速機SAF67安裝尺寸：輸出孔+鍵Φ48.8（可定做），高236*寬214（帶輸出法蘭）*長242

SAF67渦輪減速器減速比：

減速箱217.41比,減速箱190.11比,減速箱180.6比,減速箱158.45比,減速箱134.4比,減速箱121.33比,減速箱106.75比,減速箱100.8比,減速箱85.83比,減速箱78比,減速箱75.06比,減速箱67.57比,減速箱65.63比,減速箱62.35比,減速箱58.8比,減速箱54.7比,減速箱46.4比,減速箱41.89比,減速箱36.85比,減速箱34.8比,減速箱29.63比,減速箱26.93比,減速箱24.44比,減速箱23.33比,減速箱23.22比,減速箱20.37比,減速箱20.3比,減速箱17.28比,減速箱15.60比,減速箱13.73比,減速箱12.96比,減速箱11.03比,減速箱10.03比,減速箱8.69比,減速箱7.56比

減速機SAF67輸出轉數：蝸輪蝸桿減速機

6.4轉減速器,7.4轉減速器,7.8轉減速器,8.8轉減速器,10轉減速器,12轉減速器,13轉減速器,14轉減速器,16轉減速器,18轉減速器,19轉減速器,21轉減速器,22轉減速器,24轉減速器,26轉減速器,30轉減速器,33轉減速器,38轉減速器,40轉減速器,47轉減速器,52轉減速器,57轉減速器,60轉減速器,69轉減速器,81轉減速器,90轉減速器,102轉減速器,108轉減速器,127轉減速器,140轉減速器,161轉減速器,185轉減速器。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

減速機SAF67輸出扭矩：

240Nm,減速機295Nm,減速機335Nm,減速機340Nm,減速機425Nm,減速機480Nm,減速機500Nm,減速機520N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速器型號加大,或者兩個減速機組合使用）

減速機SAF67電機型號：SAF67DV63S4,SAF67DV71S4,SAF67DV80S4,SAF67DV90S4,SAF67DV100S4,SAF67DV112S4,SAF67DV132S4,SAF67DT63S4,SAF67DT71S4,SAF67DT80S4,SAF67DT90S4,SAF67DT100S4,SAF67DT112S4,SAF67DT132S4,SAF67DRE63S4,SAF67DRE71S4,SAF67DRE80S4,SAF67DRE90S4,SAF67DRE100S4,SAF67DRE112S4,SAF67DRE132S4,SAF67DRS63S4,SAF67DRS71S4,SAF67DRS80S4,SAF67DRS90S4,SAF67DRS100S4,SAF67DRS112S4,SAF67DRS132S4,SAF67Y63S4,SAF67Y71S4,SAF67Y80S4,SAF67Y90S4,SAF67Y100S4,SAF67Y112S4,SAF67Y132S4,SAF67DV63M4,SAF67DV71M4,SAF67DV80M4,SAF67DV90M4,SAF67DV100M4,SAF67DV112M4,SAF67DV132M4,SAF67DT63M4,SAF67DT71M4,SAF67DT80M4,SAF67DT90M4,SAF67DT100M4,SAF67DT112M4,SAF67DT132M4,SAF67DRE63M4,SAF67DRE71M4,SAF67DRE80M4,SAF67DRE90M4,SAF67DRE100M4,SAF67DRE112M4,SAF67DRE132M4,SAF67DRS63M4,SAF67DRS71M4,SAF67DRS80M4,SAF67DRS90M4,SAF67DRS100M4,SAF67DRS112M4,SAF67DRS132M4,SAF67Y63M4,SAF67Y71M4,SAF67Y80M4,SAF67Y90M4,SAF67Y100M4,SAF67Y112M4,SAF67Y132M4,SAF67DV63L4,SAF67DV71L4,SAF67DV80L4,SAF67DV90L4,SAF67DV100L4,SAF67DV112L4,SAF67DV132L4,SAF67DT63L4,SAF67DT71L4,SAF67DT80L4,SAF67DT90L4,SAF67DT100L4,SAF67DT112L4,SAF67DT132L4,SAF67DRE63L4,SAF67DRE71L4,SAF67DRE80L4,SAF67DRE90L4,SAF67DRE100L4,SAF67DRE112L4,SAF67DRE132L4,SAF67DRS63L4,SAF67DRS71L4,SAF67DRS80L4,SAF67DRS90L4,SAF67DRS100L4,SAF67DRS112L4,SAF67DRS132L4,SAF67Y63L4,SAF67Y71L4,SAF67Y80L4,SAF67Y90L4,SAF67Y100L4,SAF67Y112L4,SAF67Y132L4

伺服蝸輪蝸桿減速機SAF67配各種電機實物圖：

減速機SAF67生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://xinjiangqinglv.cn/product/list-safxiliejiansuji-cn.html

推薦類似型號：S67減速機
