減速機SAF57電機功率：

SAF57Y0.12KW,SAF57Y0.18KW,SAF57Y0.25KW,SAF57Y0.37KW,SAF57Y0.55KW,SAF57Y0.75KW,SAF57Y1.1KW,SAF57Y1.5KW,SAF57Y2.2KW,SAF57Y3KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。SAF系列減速機

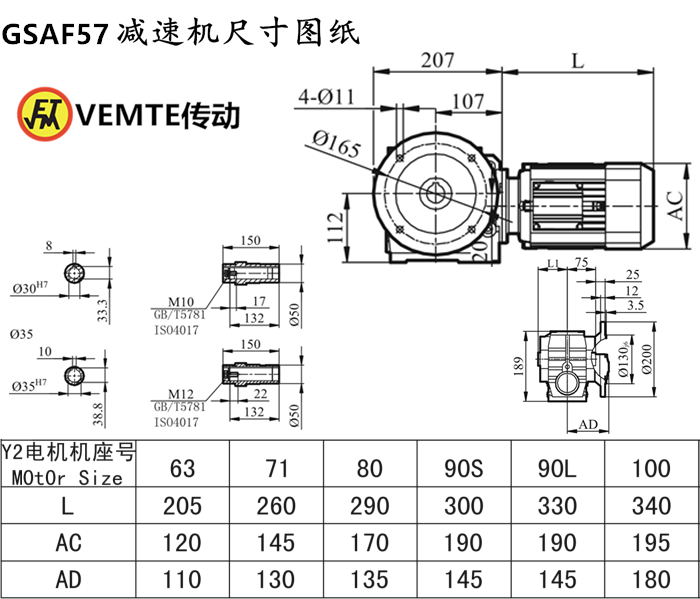

減速機SAF57安裝尺寸：輸出孔+鍵Φ38.8（可定做），高189*寬178.5（帶輸出法蘭）*長187

減速機SAF57減速比：

減速箱201比,減速箱184.8比,減速箱158.12比,減速箱137.05比,減速箱128.1比,減速箱110.73比,減速箱98.08比,減速箱84比,減速箱71.75比,減速箱69.39比,減速箱67.2比,減速箱63.8比,減速箱56.61比,減速箱54.59比,減速箱47.32比,減速箱44.22比,減速箱38.23比,減速箱32.48比,減速箱29比,減速箱24.77比,減速箱23.2比,減速箱20.33比,減速箱19.54比,減速箱17.62比,減速箱16.47比,減速箱14.24比,減速箱12.1比,減速箱10.8比,減速箱9.23比,減速箱8.64比,減速箱7.28比,減速箱6.83比,減速箱6.4比,減速箱5.39比,減速箱4.76比,減速箱4比

渦輪減速電機SAF57輸出轉數：

7轉減速器,7.6轉減速器,8.9轉減速器,10轉減速器,11轉減速器,13轉減速器,15轉減速器,17轉減速器,20轉減速器,21轉減速器,22轉減速器,25轉減速器,26轉減速器,30轉減速器,37轉減速器,43轉減速器,48轉減速器,57轉減速器,60轉減速器,69轉減速器,72轉減速器,79轉減速器,85轉減速器,98轉減速器,116轉減速器,130轉減速器,152轉減速器,162轉減速器,192轉減速器,205轉減速器,219轉減速器,260轉減速器,294轉減速器,350轉減速器。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

減速機SAF57輸出扭矩：蝸輪蝸桿減速機

減速機88Nm,減速機93Nm,減速機95Nm,減速機98Nm,減速機100Nm,減速機146Nm,減速機166Nm,減速機168Nm,減速機169Nm,減速機215Nm,減速機245Nm,減速機265Nm,減速機285Nm,減速機290Nm,減速機295N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速器型號加大,或者兩個減速機組合使用）

減速機SAF57電機型號：SAF57DV63S4,SAF57DV71S4,SAF57DV80S4,SAF57DV90S4,SAF57DV100S4,SAF57DT63S4,SAF57DT71S4,SAF57DT80S4,SAF57DT90S4,SAF57DT100S4,SAF57DRE63S4,SAF57DRE71S4,SAF57DRE80S4,SAF57DRE90S4,SAF57DRE100S4,SAF57DRS63S4,SAF57DRS71S4,SAF57DRS80S4,SAF57DRS90S4,SAF57DRS100S4,SAF57Y63S4,SAF57Y71S4,SAF57Y80S4,SAF57Y90S4,SAF57Y100S4,SAF57DV63M4,SAF57DV71M4,SAF57DV80M4,SAF57DV90M4,SAF57DV100M4,SAF57DT63M4,SAF57DT71M4,SAF57DT80M4,SAF57DT90M4,SAF57DT100M4,SAF57DRE63M4,SAF57DRE71M4,SAF57DRE80M4,SAF57DRE90M4,SAF57DRE100M4,SAF57DRS63M4,SAF57DRS71M4,SAF57DRS80M4,SAF57DRS90M4,SAF57DRS100M4,SAF57Y63M4,SAF57Y71M4,SAF57Y80M4,SAF57Y90M4,SAF57Y100M4,SAF57DV63L4,SAF57DV71L4,SAF57DV80L4,SAF57DV90L4,SAF57DV100L4,SAF57DT63L4,SAF57DT71L4,SAF57DT80L4,SAF57DT90L4,SAF57DT100L4,SAF57DRE63L4,SAF57DRE71L4,SAF57DRE80L4,SAF57DRE90L4,SAF57DRE100L4,SAF57DRS63L4,SAF57DRS71L4,SAF57DRS80L4,SAF57DRS90L4,SAF57DRS100L4,SAF57Y63L4,SAF57Y71L4,SAF57Y80L4,SAF57Y90L4,SAF57Y100L4

GSAF系列減速機SAF57配各種電機實物圖：

減速機SAF57生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://xinjiangqinglv.cn/product/list-safxiliejiansuji-cn.html

推薦類似型號：S57減速機
