減速機SA67電機功率：SA67Y0.12KW,SA67Y0.18KW,SA67Y0.25KW,SA67Y0.37KW,SA67Y0.55KW,SA67Y0.75KW,SA67Y1.1KW,SA67Y1.5KW,SA67Y2.2KW,SA67Y3KW,SA67Y4KW,SA67Y5.5KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

直角減速機SA67減速比：217.41比減速器,190.11比減速器,180.6比減速器,158.45比減速器,134.4比減速器,121.33比減速器,106.75比減速器,100.8比減速器,85.83比減速器,78比減速器,75.06比減速器,67.57比減速器,65.63比減速器,62.35比減速器,58.8比減速器,54.7比減速器,46.4比減速器,41.89比減速器,36.85比減速器,34.8比減速器,29.63比減速器,26.93比減速器,24.44比減速器,23.33比減速器,23.22比減速器,20.37比減速器,20.3比減速器,17.28比減速器,15.60比減速器,13.73比減速器,12.96比減速器,11.03比減速器,10.03比減速器,8.69比減速器,7.56比減速器

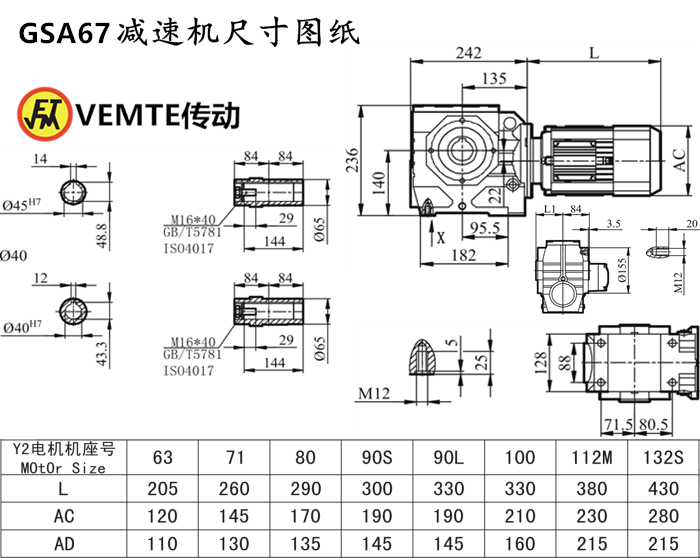

減速機SA67安裝尺寸：輸出孔+鍵Φ48.8（可定做），高236*寬168*長242

減速機SA67輸出轉數：減速機6.4rpm,減速機7.4rpm,減速機7.8rpm,減速機8.8rpm,減速機10rpm,減速機12rpm,減速機13rpm,減速機14rpm,減速機16rpm,減速機18rpm,減速機19rpm,減速機21rpm,減速機22rpm,減速機24rpm,減速機26rpm,減速機30rpm,減速機33rpm,減速機38rpm,減速機40rpm,減速機47rpm,減速機52rpm,減速機57rpm,減速機60rpm,減速機69rpm,減速機81rpm,減速機90rpm,減速機102rpm,減速機108rpm,減速機127rpm,減速機140rpm,減速機161rpm,減速機185rpm。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

減速機SA67輸出扭矩：240Nm減速箱,295Nm減速箱,335Nm減速箱,340Nm減速箱,425Nm減速箱,480Nm減速箱,500Nm減速箱,520N.m減速箱。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）

渦輪減速電機SA67型號：SA67DV63S4,SA67DV71S4,SA67DV80S4,SA67DV90S4,SA67DV100S4,SA67DV112S4,SA67DV132S4,SA67DT63S4,SA67DT71S4,SA67DT80S4,SA67DT90S4,SA67DT100S4,SA67DT112S4,SA67DT132S4,SA67DRE63S4,SA67DRE71S4,SA67DRE80S4,SA67DRE90S4,SA67DRE100S4,SA67DRE112S4,SA67DRE132S4,SA67DRS63S4,SA67DRS71S4,SA67DRS80S4,SA67DRS90S4,SA67DRS100S4,SA67DRS112S4,SA67DRS132S4,SA67Y63S4,SA67Y71S4,SA67Y80S4,SA67Y90S4,SA67Y100S4,SA67Y112S4,SA67Y132S4,SA67DV63M4,SA67DV71M4,SA67DV80M4,SA67DV90M4,SA67DV100M4,SA67DV112M4,SA67DV132M4,SA67DT63M4,SA67DT71M4,SA67DT80M4,SA67DT90M4,SA67DT100M4,SA67DT112M4,SA67DT132M4,SA67DRE63M4,SA67DRE71M4,SA67DRE80M4,SA67DRE90M4,SA67DRE100M4,SA67DRE112M4,SA67DRE132M4,SA67DRS63M4,SA67DRS71M4,SA67DRS80M4,SA67DRS90M4,SA67DRS100M4,SA67DRS112M4,SA67DRS132M4,SA67Y63M4,SA67Y71M4,SA67Y80M4,SA67Y90M4,SA67Y100M4,SA67Y112M4,SA67Y132M4,SA67DV63L4,SA67DV71L4,SA67DV80L4,SA67DV90L4,SA67DV100L4,SA67DV112L4,SA67DV132L4,SA67DT63L4,SA67DT71L4,SA67DT80L4,SA67DT90L4,SA67DT100L4,SA67DT112L4,SA67DT132L4,SA67DRE63L4,SA67DRE71L4,SA67DRE80L4,SA67DRE90L4,SA67DRE100L4,SA67DRE112L4,SA67DRE132L4,SA67DRS63L4,SA67DRS71L4,SA67DRS80L4,SA67DRS90L4,SA67DRS100L4,SA67DRS112L4,SA67DRS132L4,SA67Y63L4,SA67Y71L4,SA67Y80L4,SA67Y90L4,SA67Y100L4,SA67Y112L4,SA67Y132L4

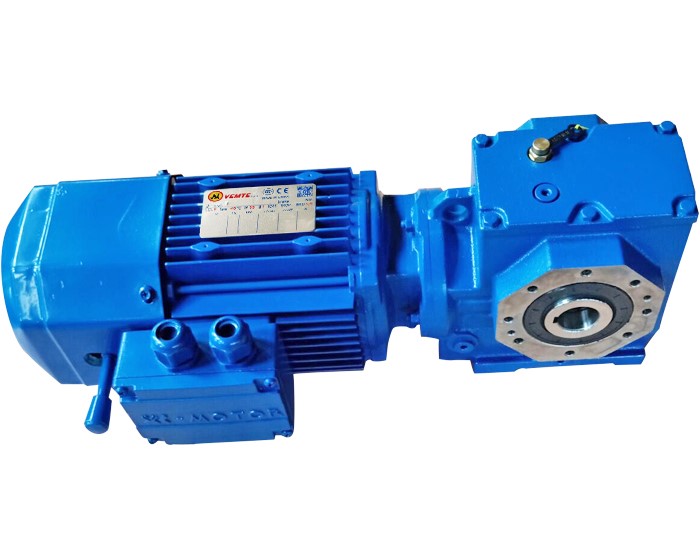

GSA系列減速器SA67配各種電機實物圖：

減速機SA67生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://xinjiangqinglv.cn/product/list-saxiliejiansuji-cn.html

推薦類似型號：SAF67減速機
