減速機FAF57電機功率：

FAF57Y0.12KW,FAF57Y0.18KW,FAF57Y0.25KW,FAF57Y0.37KW,FAF57Y0.55KW,FAF57Y0.75KW,FAF57Y1.1KW,FAF57Y1.5KW,FAF57Y2.2KW電機,FAF57Y3KW,FAF57Y4KW,FAF57Y5.5KW電機.（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

齒輪減速機FAF57減速比：

減速器1:199,減速器1:183,減速器1:157,減速器1:136,減速器1:127,減速器1:110,減速器1:93,減速器1:83,減速器1:72,減速器1:68,減速器1:58,減速器1:50,減速器1:44,減速器1:38,減速器1:35,減速器1:30,減速器1:40,減速器1:34,減速器1:29,減速器1:28,減速器1:24,減速器1:21,減速器1:19,減速器1:16,減速器1:15,減速器1:13,減速器1:12,減速器1:10,減速器1:9,減速器1:7,減速器1:6,減速器1:5

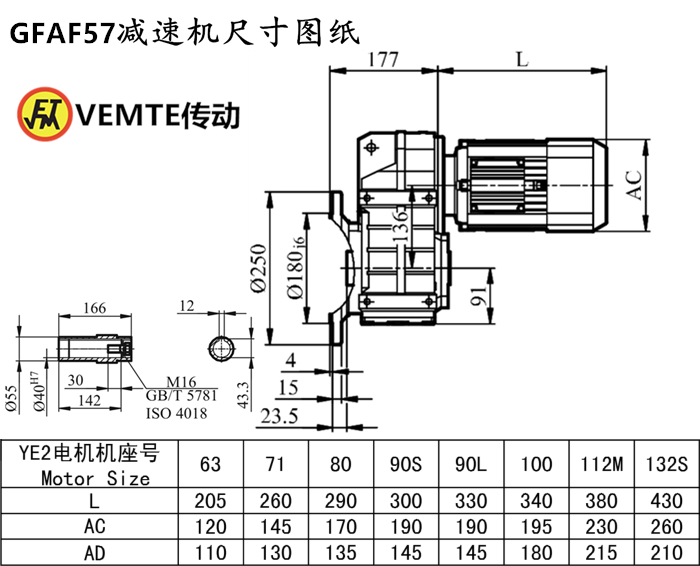

減速機FAF57安裝尺寸：輸出孔Φ43.3（可定做），高315*寬200*長177（帶法蘭）FAF系列減速機

減速機FAF57輸出轉數：

270rpm減速器,7rpm減速器,8rpm減速器,9rpm減速器,10rpm減速器,11rpm減速器,13rpm減速器,15rpm減速器,17rpm減速器,19rpm減速器,21rpm減速器,24rpm減速器,28rpm減速器,31rpm減速器,37rpm減速器,39rpm減速器,46rpm減速器,35rpm減速器,41rpm減速器,47rpm減速器,49rpm減速器,56rpm減速器,66rpm減速器,73rpm減速器,83rpm減速器,88rpm減速器,104rpm減速器,114rpm減速器,132rpm減速器,150rpm減速器,171rpm減速器,181rpm減速器,213rpm減速器,234rpm減速器。（以上rpm數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

FAF57平行軸減速器輸出扭矩：

600Nm減速器,590Nm減速器,290Nm減速器,500Nm減速器,545Nm減速器,535Nm減速器,575Nm減速器,420Nm減速器,415Nm減速器。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速器型號加大）

減速機FAF57電機型號：FAF57DRE132M4,FAF57DRE63M4,FAF57DRE71M4,FAF57DRE80M4,FAF57DRE90M4,FAF57DRS100M4,FAF57DRS112M4,FAF57DRS132M4,FAF57DRS63M4,FAF57DRS71M4,FAF57DRS80M4,FAF57DRS90M4,FAF57DT100M4,FAF57DT112M4,FAF57DT132M4,FAF57DT63M4,FAF57DT71M4,FAF57DT80M4,FAF57DT90M4,FAF57DV100M4,FAF57DV112M4,FAF57DV132M4,FAF57DV63M4,FAF57DV71M4,FAF57DV80M4,FAF57DV90M4,FAF57Y100M4,FAF57Y112M4,FAF57Y132M4,FAF57Y63M4,FAF57Y71M4,FAF57Y80M4,FAF57Y90M4,FAF57DRE132S4,FAF57DRE63S4,FAF57DRE71S4,FAF57DRE80S4,FAF57DRE90S4,FAF57DRS100S4,FAF57DRS112S4,FAF57DRS132S4,FAF57DRS63S4,FAF57DRS71S4,FAF57DRS80S4,FAF57DRS90S4,FAF57DT100S4,FAF57DT112S4,FAF57DT132S4,FAF57DT63S4,FAF57DT71S4,FAF57DT80S4,FAF57DT90S4,FAF57DV100S4,FAF57DV112S4,FAF57DV132S4,FAF57DV63S4,FAF57DV71S4,FAF57DV80S4,FAF57DV90S4,FAF57Y100S4,FAF57Y112S4,FAF57Y132S4,FAF57Y63S4,FAF57Y71S4,FAF57Y80S4,FAF57Y90S4,FAF57DRE132L4,FAF57DRE63L4,FAF57DRE71L4,FAF57DRE80L4,FAF57DRE90L4,FAF57DRS100L4,FAF57DRS112L4,FAF57DRS132L4,FAF57DRS63L4,FAF57DRS71L4,FAF57DRS80L4,FAF57DRS90L4,FAF57DT100L4,FAF57DT112L4,FAF57DT132L4,FAF57DT63L4,FAF57DT71L4,FAF57DT80L4,FAF57DT90L4,FAF57DV100L4,FAF57DV112L4,FAF57DV132L4,FAF57DV63L4,FAF57DV71L4,FAF57DV80L4,FAF57DV90L4,FAF57Y100L4,FAF57Y112L4,FAF57Y132L4,FAF57Y63L4,FAF57Y71L4,FAF57Y80L4,FAF57Y90L4,FAF57DRE100M4,FAF57DRE112M4,FAF57DRE100L4,FAF57DRE112L4,FAF57DRE100S4,FAF57DRE112S4

FAF系列減速器FAF57配各種電機實物圖：

減速機FAF57生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://xinjiangqinglv.cn/product/list-fafxiliejiansuji-cn.html

推薦類似型號：F57減速機
