FAF127減速機電機功率：

FAF127Y7.5KW,FAF127Y11KW,FAF127Y15KW,FAF127Y18.5KW,FAF127Y22KW,FAF127Y30KW,FAF127Y37KW,FAF127Y45KW,FAF127Y55KW,FAF127Y75KW,FAF127Y90KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

FAF127齒輪減速機減速比：

減速器170比,減速器153比,減速器125比,減速器114比,減速器98比,減速器87比,減速器75比,減速器70比,減速器63比,減速器55比,減速器48比,減速器42比,減速器37比,減速器31比,減速器25比,減速器26比,減速器24比,減速器21比,減速器18比,減速器16比,減速器14比,減速器12比,減速器10比,減速器8比,減速器7比,減速器6比,減速器5比,減速器4比

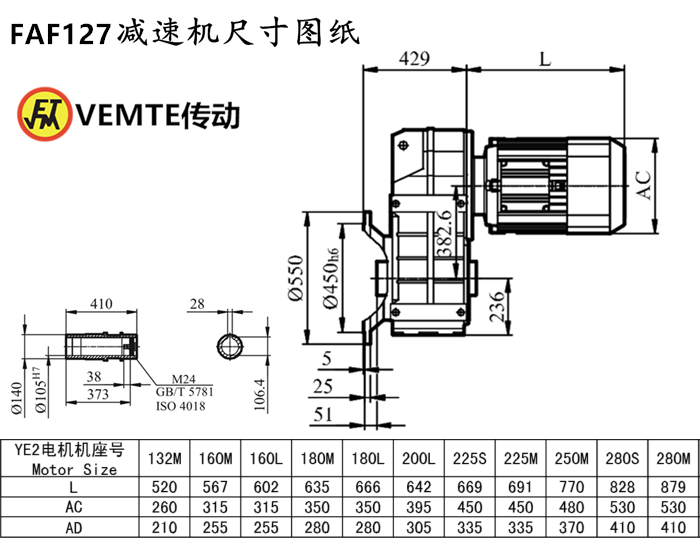

FAF系列減速器FAF127安裝尺寸：輸出孔Φ106.4（可定做），高856*寬530*長429（帶法蘭）

FAF127減速機輸出轉數：

8.2轉減速器,9.1轉減速器,11轉減速器,12轉減速器,14轉減速器,16轉減速器,19轉減速器,20轉減速器,22轉減速器,25轉減速器,29轉減速器,33轉減速器,38轉減速器,45轉減速器,55轉減速器,52轉減速器,57轉減速器,65轉減速器,74轉減速器,86轉減速器,96轉減速器,112轉減速器,137轉減速器,158轉減速器,178轉減速器,206轉減速器,254轉減速器,299轉減速器。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

FAF127平行軸減速機輸出扭矩：

減速器12000Nm,減速器11000Nm,減速器10000Nm,減速器9500Nm,減速器8500Nm,減速器7000Nm,減速器6000Nm。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速器型號加大）

FAF127減速機電機型號：FAF127DRE132M4,FAF127DRE160M4,FAF127DRE180M4,FAF127DRE200M4,FAF127DRE225M4,FAF127DRE250M4,FAF127DRE280M4,FAF127DRS132M4,FAF127DRS160M4,FAF127DRS180M4,FAF127DRS200M4,FAF127DRS225M4,FAF127DRS250M4,FAF127DRS280M4,FAF127DT132M4,FAF127DT160M4,FAF127DT180M4,FAF127DT200M4,FAF127DT225M4,FAF127DT250M4,FAF127DT280M4,FAF127DV132M4,FAF127DV160M4,FAF127DV180M4,FAF127DV200M4,FAF127DV225M4,FAF127DV250M4,FAF127DV280M4,FAF127Y132M4,FAF127Y160M4,FAF127Y180M4,FAF127Y200M4,FAF127Y225M4,FAF127Y250M4,FAF127Y280M4,FAF127DRE132L4,FAF127DRE160L4,FAF127DRE180L4,FAF127DRE200L4,FAF127DRE225L4,FAF127DRE250L4,FAF127DRE280L4,FAF127DRS132L4,FAF127DRS160L4,FAF127DRS180L4,FAF127DRS200L4,FAF127DRS225L4,FAF127DRS250L4,FAF127DRS280L4,FAF127DT132L4,FAF127DT160L4,FAF127DT180L4,FAF127DT200L4,FAF127DT225L4,FAF127DT250L4,FAF127DT280L4,FAF127DV132L4,FAF127DV160L4,FAF127DV180L4,FAF127DV200L4,FAF127DV225L4,FAF127DV250L4,FAF127DV280L4,FAF127Y132L4,FAF127Y160L4,FAF127Y180L4,FAF127Y200L4,FAF127Y225L4,FAF127Y250L4,FAF127Y280L4,FAF127DRE132S4,FAF127DRE160S4,FAF127DRE180S4,FAF127DRE200S4,FAF127DRE225S4,FAF127DRE250S4,FAF127DRE280S4,FAF127DRS132S4,FAF127DRS160S4,FAF127DRS180S4,FAF127DRS200S4,FAF127DRS225S4,FAF127DRS250S4,FAF127DRS280S4,FAF127DT132S4,FAF127DT160S4,FAF127DT180S4,FAF127DT200S4,FAF127DT225S4,FAF127DT250S4,FAF127DT280S4,FAF127DV132S4,FAF127DV160S4,FAF127DV180S4,FAF127DV200S4,FAF127DV225S4,FAF127DV250S4,FAF127DV280S4,FAF127Y132S4,FAF127Y160S4,FAF127Y180S4,FAF127Y200S4,FAF127Y225S4,FAF127Y250S4,FAF127Y280S4

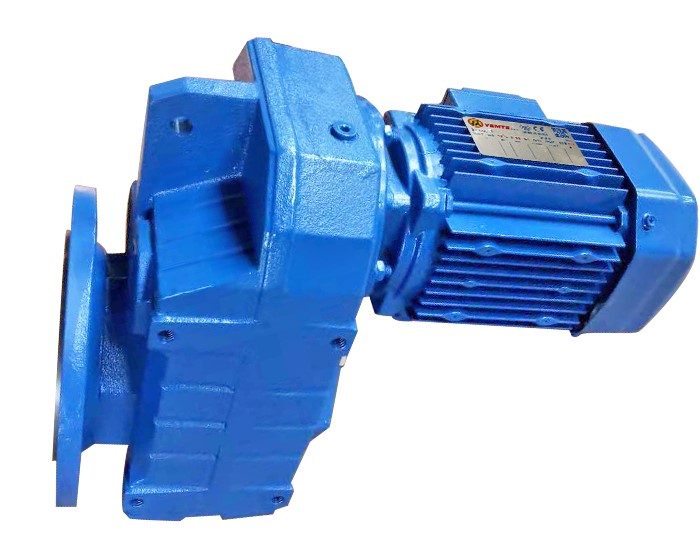

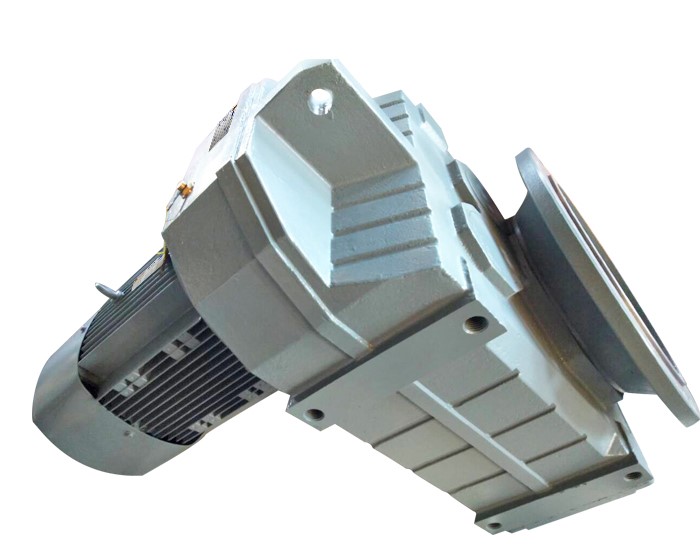

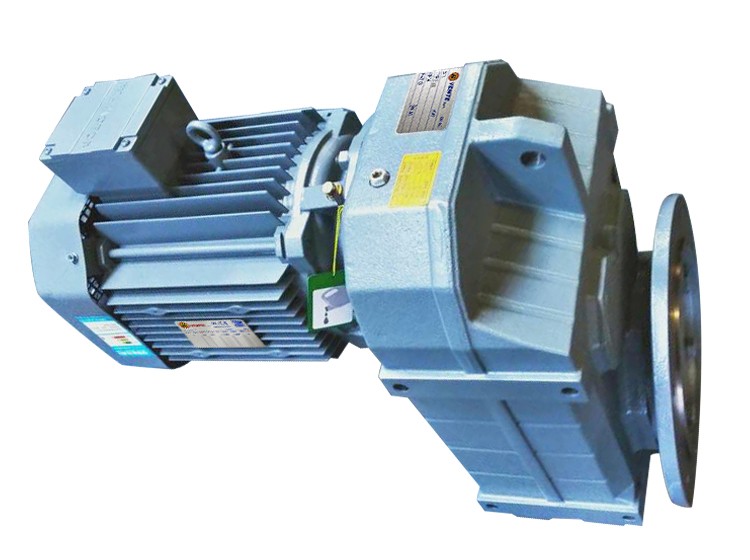

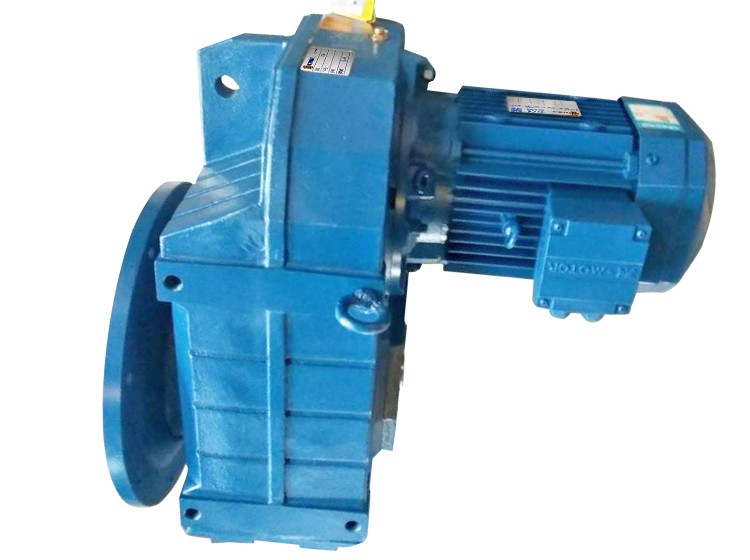

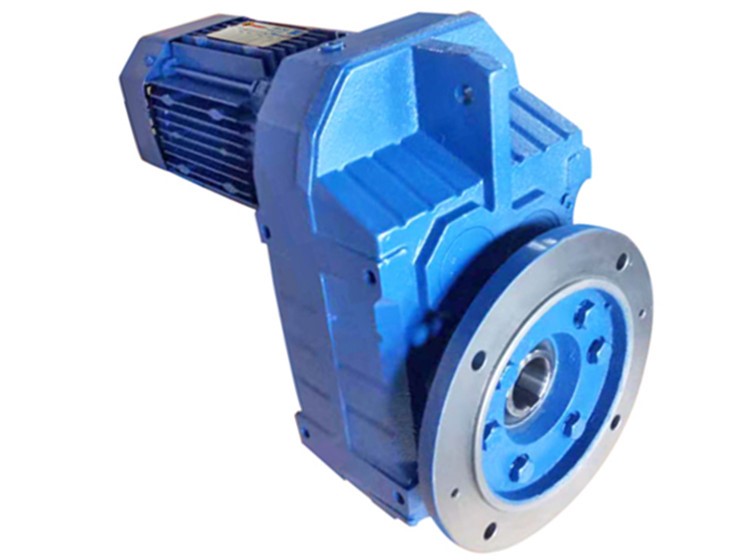

FAF127減速機配各種電機實物圖：FAF系列減速電機

FAF127減速機生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://xinjiangqinglv.cn/product/list-fafxiliejiansuji-cn.html

推薦類似型號：減速機F127
