FAF67齒輪減速電機功率：

FAF67Y0.12KW,FAF67Y0.18KW,FAF67Y0.25KW,FAF67Y0.37KW,FAF67Y0.55KW,FAF67Y0.75KW,FAF67Y1.1KW,FAF67Y1.5KW,FAF67Y2.2KW電機,FAF67Y3KW,FAF67Y4KW,FAF67Y5.5KW電機。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

FAF67減速機減速比：

減速器229比,減速器195比,減速器170比,減速器162比,減速器142比,減速器120比,減速器109比,減速器95比,減速器90比,減速器79比,減速器67比,減速器61比,減速器53比,減速器50比,減速器43比,減速器39比,減速器34比,減速器36比,減速器32比,減速器27比,減速器25比,減速器22比,減速器20比,減速器18比,減速器16比,減速器14比,減速器12比,減速器11比,減速器9比,減速器8比,減速器7比,減速器6比,減速器5比,減速器4比,減速器3比 FAF系列減速機

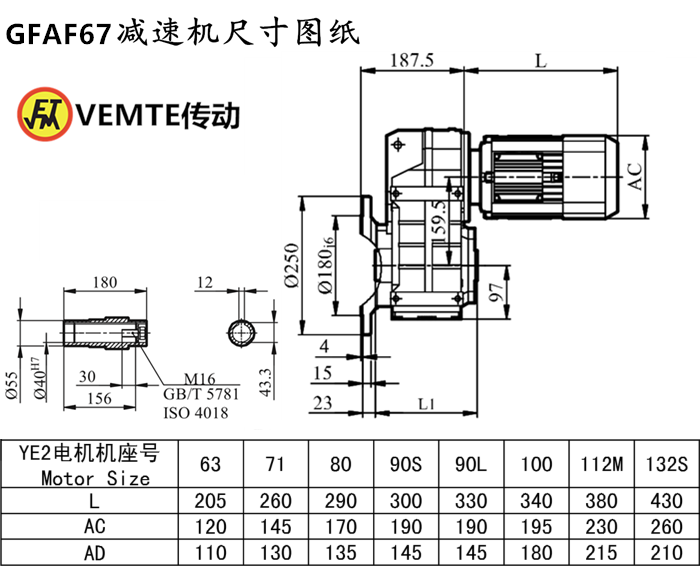

FAF67減速機安裝尺寸：輸出孔Φ43.3（可定做），高343*寬212*長187.5（帶法蘭）

FAF67平行軸斜齒輪減速機輸出轉數：

6轉減速器,7轉減速器,8轉減速器,9轉減速器,12轉減速器,13轉減速器,15轉減速器,18轉減速器,21轉減速器,23轉減速器,26轉減速器,28轉減速器,32轉減速器,36轉減速器,41轉減速器,39轉減速器,44轉減速器,51轉減速器,56轉減速器,63轉減速器,67轉減速器,77轉減速器,85轉減速器,97轉減速器,110轉減速器,124轉減速器,145轉減速器,154轉減速器,163轉減速器,186轉減速器,206轉減速器,235轉減速器,267轉減速器,300轉減速器,353轉減速器。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

FAF67減速機輸出扭矩：

減速器820Nm,減速器780Nm,減速器740Nm,減速器620Nm,減速器610Nm,減速器590Nm,減速器570Nm,減速器560Nm,減速器530Nm,減速器500Nm。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速器型號加大）

FAF系列減速電機FAF67型號：FAF67DRE100S4,FAF67DRE112S4,FAF67DRE132S4,FAF67DRE63S4,FAF67DRE71S4,FAF67DRE80S4,FAF67DRE90S4,FAF67DRS100S4,FAF67DRS112S4,FAF67DRS132S4,FAF67DRS63S4,FAF67DRS71S4,FAF67DRS80S4,FAF67DRS90S4,FAF67DT100S4,FAF67DT112S4,FAF67DT132S4,FAF67DT63S4,FAF67DT71S4,FAF67DT80S4,FAF67DT90S4,FAF67DV100S4,FAF67DV112S4,FAF67DV132S4,FAF67DV63S4,FAF67DV71S4,FAF67DV80S4,FAF67DV90S4,FAF67Y100S4,FAF67Y112S4,FAF67Y132S4,FAF67Y63S4,FAF67Y71S4,FAF67Y80S4,FAF67Y90S4,FAF67DRE100M4,FAF67DRE112M4,FAF67DRE132M4,FAF67DRE63M4,FAF67DRE71M4,FAF67DRE80M4,FAF67DRE90M4,FAF67DRS100M4,FAF67DRS112M4,FAF67DRS132M4,FAF67DRS63M4,FAF67DRS71M4,FAF67DRS80M4,FAF67DRS90M4,FAF67DT100M4,FAF67DT112M4,FAF67DT132M4,FAF67DT63M4,FAF67DT71M4,FAF67DT80M4,FAF67DT90M4,FAF67DV100M4,FAF67DV112M4,FAF67DV132M4,FAF67DV63M4,FAF67DV71M4,FAF67DV80M4,FAF67DV90M4,FAF67Y100M4,FAF67Y112M4,FAF67Y132M4,FAF67Y63M4,FAF67Y71M4,FAF67Y80M4,FAF67Y90M4,FAF67DRE100L4,FAF67DRE112L4,FAF67DRE132L4,FAF67DRE63L4,FAF67DRE71L4,FAF67DRE80L4,FAF67DRE90L4,FAF67DRS100L4,FAF67DRS112L4,FAF67DRS132L4,FAF67DRS63L4,FAF67DRS71L4,FAF67DRS80L4,FAF67DRS90L4,FAF67DT100L4,FAF67DT112L4,FAF67DT132L4,FAF67DT63L4,FAF67DT71L4,FAF67DT80L4,FAF67DT90L4,FAF67DV100L4,FAF67DV112L4,FAF67DV132L4,FAF67DV63L4,FAF67DV71L4,FAF67DV80L4,FAF67DV90L4,FAF67Y100L4,FAF67Y112L4,FAF67Y132L4,FAF67Y63L4,FAF67Y71L4,FAF67Y80L4,FAF67Y90L4

FAF67減速機配各種電機實物圖：

FAF67減速機生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://xinjiangqinglv.cn/product/list-fafxiliejiansuji-cn.html

推薦類似型號：減速機F67
