RXF87減速機電機功率：

RXF87Y3KW,RXF87Y4KW,RXF87Y5.5KW,RXF87Y7.5KW,RXF87Y11KW,RXF87Y15KW,RXF87Y18.5KW,RXF87Y22KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

RXF87齒輪減速器減速比：

減速箱1:1.39,減速箱1:1.6,減速箱1:1.93,減速箱1:2.15,減速箱1:2.48,減速箱1:2.76,減速箱1:3.09,減速箱1:3.48,減速箱1:3.78,減速箱1:4.5,減速箱1:5.07,減速箱1:5.56,減速箱1:6.45,減速箱1:7.2,減速箱1:7.63,減速箱1:8.65

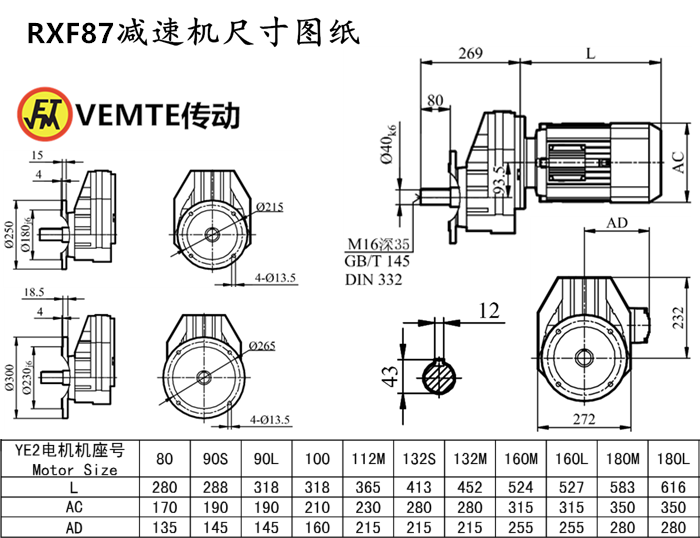

RXF87減速機安裝尺寸：輸出軸Φ40+鍵3（可定做），高332*寬272*長269（帶輸出軸）

RXF87減速機輸出轉數：

162轉減速器,183轉減速器,194轉減速器,217轉減速器,252轉減速器,276轉減速器,311轉減速器,370轉減速器,402轉減速器,453轉減速器,507轉減速器,565轉減速器,651轉減速器,725轉減速器,875轉減速器,1005轉減速器,。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

RXF87同軸減速器輸出扭矩：

49N.m減速機,139N.m減速機,140N.m減速機,192N.m減速機,225N.m減速機,250N.m減速機,290N.m減速機,290N.m減速機,305N.m減速機,315N.m減速機,355N.m減速機,385N.m減速機,405N.m減速機,。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速器型號加大,或者兩個減速機組合使用）

RXF87減速機電機型號：RXF87DV71S4,RXF87DV80S4,RXF87DV90S4,RXF87DV100S4,RXF87DV112S4,RXF87DV132S4,RXF87DV160S4,RXF87DV180S4,RXF87DV200S4,RXF87DT71S4,RXF87DT80S4,RXF87DT90S4,RXF87DT100S4,RXF87DT112S4,RXF87DT132S4,RXF87DT160S4,RXF87DT180S4,RXF87DT200S4,RXF87DRS71S4,RXF87DRS80S4,RXF87DRS90S4,RXF87DRS100S4,RXF87DRS112S4,RXF87DRS132S4,RXF87DRS160S4,RXF87DRS180S4,RXF87DRS200S4,RXF87DRE71S4,RXF87DRE80S4,RXF87DRE90S4,RXF87DRE100S4,RXF87DRE112S4,RXF87DRE132S4,RXF87DRE160S4,RXF87DRE180S4,RXF87DRE200S4,RXF87Y71S4,RXF87Y80S4,RXF87Y90S4,RXF87Y100S4,RXF87Y112S4,RXF87Y132S4,RXF87Y160S4,RXF87Y180S4,RXF87Y200S4,RXF87DV71M4,RXF87DV80M4,RXF87DV90M4,RXF87DV100M4,RXF87DV112M4,RXF87DV132M4,RXF87DV160M4,RXF87DV180M4,RXF87DV200M4,RXF87DT71M4,RXF87DT80M4,RXF87DT90M4,RXF87DT100M4,RXF87DT112M4,RXF87DT132M4,RXF87DT160M4,RXF87DT180M4,RXF87DT200M4,RXF87DRS71M4,RXF87DRS80M4,RXF87DRS90M4,RXF87DRS100M4,RXF87DRS112M4,RXF87DRS132M4,RXF87DRS160M4,RXF87DRS180M4,RXF87DRS200M4,RXF87DRE71M4,RXF87DRE80M4,RXF87DRE90M4,RXF87DRE100M4,RXF87DRE112M4,RXF87DRE132M4,RXF87DRE160M4,RXF87DRE180M4,RXF87DRE200M4,RXF87Y71M4,RXF87Y80M4,RXF87Y90M4,RXF87Y100M4,RXF87Y112M4,RXF87Y132M4,RXF87Y160M4,RXF87Y180M4,RXF87Y200M4,RXF87DV71L4,RXF87DV80L4,RXF87DV90L4,RXF87DV100L4,RXF87DV112L4,RXF87DV132L4,RXF87DV160L4,RXF87DV180L4,RXF87DV200L4,RXF87DT71L4,RXF87DT80L4,RXF87DT90L4,RXF87DT100L4,RXF87DT112L4,RXF87DT132L4,RXF87DT160L4,RXF87DT180L4,RXF87DT200L4,RXF87DRS71L4,RXF87DRS80L4,RXF87DRS90L4,RXF87DRS100L4,RXF87DRS112L4,RXF87DRS132L4,RXF87DRS160L4,RXF87DRS180L4,RXF87DRS200L4,RXF87DRE71L4,RXF87DRE80L4,RXF87DRE90L4,RXF87DRE100L4,RXF87DRE112L4,RXF87DRE132L4,RXF87DRE160L4,RXF87DRE180L4,RXF87DRE200L4,RXF87Y71L4,RXF87Y80L4,RXF87Y90L4,RXF87Y100L4,RXF87Y112L4,RXF87Y132L4,RXF87Y160L4,RXF87Y180L4,RXF87Y200L4,

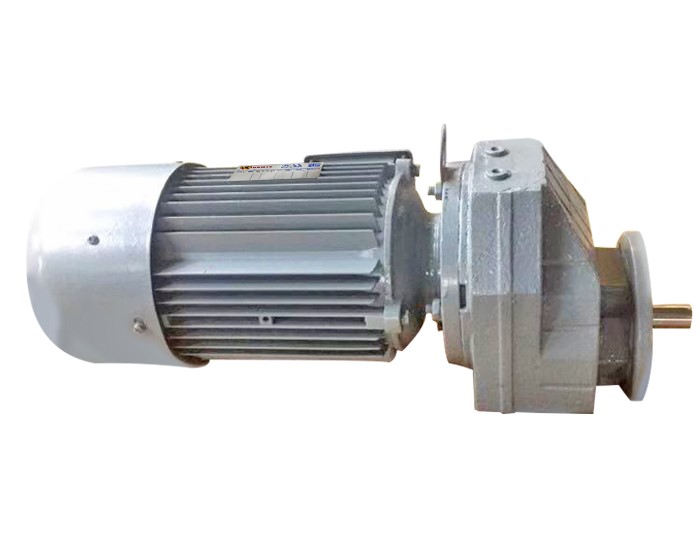

RXF系列減速機RXF87配各種電機實物圖：

RXF87減速機生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://xinjiangqinglv.cn/product/list-rxfxiliejiansuji-cn.html

推薦類似型號：減速機R27
