R97齒輪減速電機功率：

R97Y0.55KW,R97Y0.75KW,R97Y1.1KW,R97Y1.5KW,R97Y2.2KW,R97Y3KW,R97Y4KW,R97Y5.5KW,R97Y7.5KW,R97Y11KW,R97Y15KW,R97Y18.5KW,R97Y22KW,R97Y30KW,R97Y37KW（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

R97減速機減速比：R系列減速電機

4.5比減速器,5.2比減速器,6.21比減速器,7.12比減速器,8.39比減速器,9.29比減速器,10.83比減速器,13.39比減速器,14.62比減速器,16.17比減速器,18.24比減速器,20.14比減速器,22.37比減速器,25.03比減速器,27.19比減速器,27.58比減速器,32.05比減速器,33.25比減速器,37.13比減速器,42.78比減速器,47.58比減速器,53.21比減速器,59.92比減速器,65.21比減速器,72.17比減速器,83.15比減速器,92.48比減速器,103.44比減速器,116.48比減速器,126.75比減速器,150.78比減速器,170.02比減速器,186.3比減速器,216.28比減速器,241.25比減速器,255.71比減速器,289.74比減速器

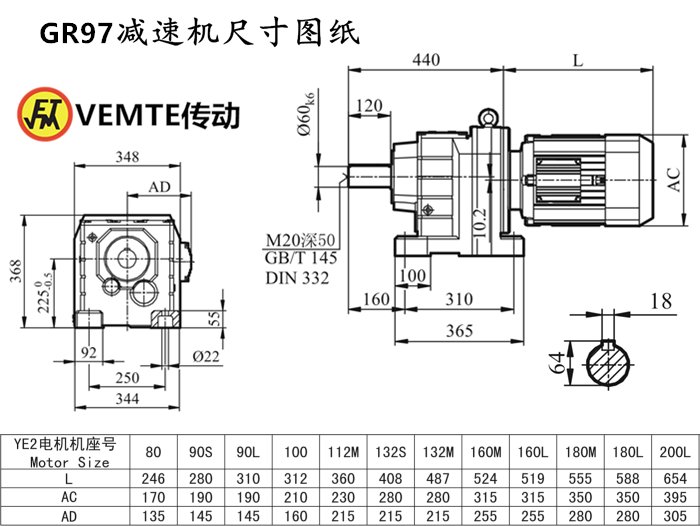

R97減速機安裝尺寸：輸出軸Φ60+鍵4（可定做），高368*寬344*長440（帶輸出軸）

R97同軸減速機輸出轉數：

4.8轉減速機,5.5轉減速機,5.8轉減速機,6.5轉減速機,7.5轉減速機,8.2轉減速機,9.3轉減速機,11轉減速機,12轉減速機,14轉減速機,15轉減速機,17轉減速機,19轉減速機,21轉減速機,23轉減速機,26轉減速機,29轉減速機,33轉減速機,38轉減速機,42轉減速機,44轉減速機,51轉減速機,56轉減速機,63轉減速機,70轉減速機,77轉減速機,87轉減速機,96轉減速機,113轉減速機,129轉減速機,151轉減速機,167轉減速機,197轉減速機,225轉減速機,269轉減速機,311轉減速機。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

R系列減速機R97輸出扭矩：

減速箱1630N.m,減速箱1780N.m,減速箱1890N.m,減速箱2000N.m,減速箱2030N.m,減速箱2090N.m,減速箱2190N.m,減速箱2300N.m,減速箱2400N.m,減速箱2500N.m,減速箱2560N.m,減速箱2610N.m,減速箱2670N.m,減速箱2720N.m,減速箱2830N.m,減速箱2890N.m,減速箱3000N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）

R97減速機電機型號:

R97DV80S4,R97DV90S4,R97DV100S4,R97DV112S4,R97DV132S4,R97DV160S4,R97DV180S4,R97DV200S4,R97DT80S4,R97DT90S4,R97DT100S4,R97DT112S4,R97DT132S4,R97DT160S4,R97DT180S4,R97DT200S4,R97DRS80S4,R97DRS90S4,R97DRS100S4,R97DRS112S4,R97DRS132S4,R97DRS160S4,R97DRS180S4,R97DRS200S4,R97DRE80S4,R97DRE90S4,R97DRE100S4,R97DRE112S4,R97DRE132S4,R97DRE160S4,R97DRE180S4,R97DRE200S4,R97Y80S4,R97Y90S4,R97Y100S4,R97Y112S4,R97Y132S4,R97Y160S4,R97Y180S4,R97Y200S4,R97Y225S4,R97DV80M4,R97DV90M4,R97DV100M4,R97DV112M4,R97DV132M4,R97DV160M4,R97DV180M4,R97DV200M4,R97DT80M4,R97DT90M4,R97DT100M4,R97DT112M4,R97DT132M4,R97DT160M4,R97DT180M4,R97DT200M4,R97DRS80M4,R97DRS90M4,R97DRS100M4,R97DRS112M4,R97DRS132M4,R97DRS160M4,R97DRS180M4,R97DRS200M4,R97DRE80M4,R97DRE90M4,R97DRE100M4,R97DRE112M4,R97DRE132M4,R97DRE160M4,R97DRE180M4,R97DRE200M4,R97Y80M4,R97Y90M4,R97Y100M4,R97Y112M4,R97Y132M4,R97Y160M4,R97Y180M4,R97Y200M4,R97Y225M4,R97DV80L4,R97DV90L4,R97DV100L4,R97DV112L4,R97DV132L4,R97DV160L4,R97DV180L4,R97DV200L4,R97DT80L4,R97DT90L4,R97DT100L4,R97DT112L4,R97DT132L4,R97DT160L4,R97DT180L4,R97DT200L4,R97DRS80L4,R97DRS90L4,R97DRS100L4,R97DRS112L4,R97DRS132L4,R97DRS160L4,R97DRS180L4,R97DRS200L4,R97DRE80L4,R97DRE90L4,R97DRE100L4,R97DRE112L4,R97DRE132L4,R97DRE160L4,R97DRE180L4,R97DRE200L4,R97Y80L4,R97Y90L4,R97Y100L4,R97Y112L4,R97Y132L4,R97Y160L4,R97Y180L4,R97Y200L4,R97Y225L4

R97減速機配各種電機的實物圖：

R97減速機生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約

推薦類似型號：減速機RF97
