KF127電機減速機功率：KF127Y0.18KW,KF127Y0.25KW,KF127Y0.37KW,KF127Y0.55KW,KF127Y0.75KW,KF127Y1.1KW,KF127Y1.5KW,KF127Y2.2KW,KF127Y3KW,KF127Y4KW,KF127Y5.5KW,KF127Y7.5KW,KF127Y11KW,KF127Y15KW,KF127Y18.5KW,KF127Y22KW,KF127Y30KW,KF127Y37KW,KF127Y45KW,KF127Y55KW,KF127Y75KW,KF127Y90KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

KF127減速機減速比：伺服減速機

146.07比減速機,136.14比減速機,122.48比減速機,110.18比減速機,89.89比減速機,81.98比減速機,70.95比減速機,62.60比減速機,54.07比減速機,47.82比減速機,40.19比減速機,36.25比減速機,31.37比減速機,27.68比減速機,23.91比減速機,21.15比減速機,17.77比減速機,14.35比減速機,12.79比減速機,10.74比減速機,8.68比減速機

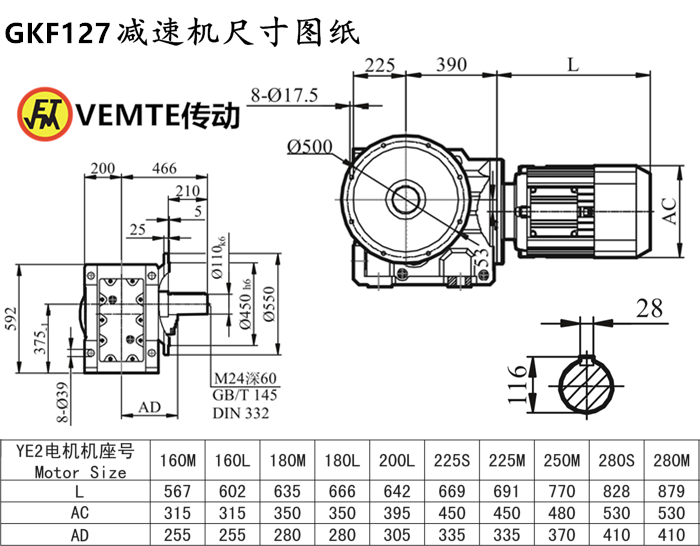

KF127減速機安裝尺寸：輸出軸+鍵Φ116（可定做），高592*寬666（帶輸出軸）*長615

KF127減速箱輸出轉數：

9.6轉減速箱,10轉減速箱,11轉減速箱,13轉減速箱,16轉減速箱,17轉減速箱,20轉減速箱,22轉減速箱,26轉減速箱,29轉減速箱,35轉減速箱,39轉減速箱,45轉減速箱,51轉減速箱,59轉減速箱,66轉減速箱,79轉減速箱,98轉減速箱,109轉減速箱,130轉減速箱,161轉減速箱。（以上rpm數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

KF127雙出軸減速機輸出扭矩：

13000Nm減速器,12100Nm減速器,8530Nm減速器,8000Nm減速器,7230Nm減速器。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速器型號加大,或者兩個減速機組合使用）

KF127減速機電機型號：KF127DV280S4,KF127DV225S4,KF127DV200S4,KF127DV180S4,KF127DV160S4,KF127DV132S4,KF127DV112S4,KF127DT280S4,KF127DT225S4,KF127DT200S4,KF127DT180S4,KF127DT160S4,KF127DT132S4,KF127DT112S4,KF127DRS280S4,KF127DRS225S4,KF127DRS200S4,KF127DRS180S4,KF127DRS160S4,KF127DRS132S4,KF127DRS112S4,KF127DRE280S4,KF127DRE225S4,KF127DRE200S4,KF127DRE180S4,KF127DRE160S4,KF127DRE132S4,KF127DRE112S4,KF127Y280S4,KF127Y225S4,KF127Y200S4,KF127Y180S4,KF127Y160S4,KF127Y132S4,KF127Y112S4,KF127DV280M4,KF127DV225M4,KF127DV200M4,KF127DV180M4,KF127DV160M4,KF127DV132M4,KF127DV112M4,KF127DT280M4,KF127DT225M4,KF127DT200M4,KF127DT180M4,KF127DT160M4,KF127DT132M4,KF127DT112M4,KF127DRS280M4,KF127DRS225M4,KF127DRS200M4,KF127DRS180M4,KF127DRS160M4,KF127DRS132M4,KF127DRS112M4,KF127DRE280M4,KF127DRE225M4,KF127DRE200M4,KF127DRE180M4,KF127DRE160M4,KF127DRE132M4,KF127DRE112M4,KF127Y280M4,KF127Y225M4,KF127Y200M4,KF127Y180M4,KF127Y160M4,KF127Y132M4,KF127Y112M4,KF127DV280L4,KF127DV225L4,KF127DV200L4,KF127DV180L4,KF127DV160L4,KF127DV132L4,KF127DV112L4,KF127DT280L4,KF127DT225L4,KF127DT200L4,KF127DT180L4,KF127DT160L4,KF127DT132L4,KF127DT112L4,KF127DRS280L4,KF127DRS225L4,KF127DRS200L4,KF127DRS180L4,KF127DRS160L4,KF127DRS132L4,KF127DRS112L4,KF127DRE280L4,KF127DRE225L4,KF127DRE200L4,KF127DRE180L4,KF127DRE160L4,KF127DRE132L4,KF127DRE112L4,KF127Y280L4,KF127Y225L4,KF127Y200L4,KF127Y180L4,KF127Y160L4,KF127Y132L4,KF127Y112L4

大扭力減速電機KF127減速機搭配各種電機實物圖：可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間

KF127減速機工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://xinjiangqinglv.cn/product/list-kfxiliejiansuji-cn.html

推薦類似型號：減速機KA127
