KA77減速機電機功率：KA系列減速機

KA77Y0.37KW,KA77Y0.55KW,KA77Y0.75KW,KA77Y1.1KW,KA77Y1.5KW,KA77Y2.2KW,KA77Y3KW,KA77Y4KW,KA77Y5.5KW,KA77Y7.5KW,KA77Y11KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

KA77錐齒輪減速機減速比：

1:192.18減速器,1:179.37減速器,1:154.02減速器,1:135.28減速器,1:128.52減速器,1:113.56減速器,1:97.05減速器,1:88.97減速器,1:78.07減速器,1:73.99減速器,1:64.75減速器,1:58.34減速器,1:51.18減速器,1:45.16減速器,1:40.04減速器,1:38.39減速器,1:35.2減速器,1:30.89減速器,1:29.27減速器,1:25.62減速器,1:23.08減速器,1:20.25減速器,1:17.87減速器,1:15.84減速器,1:13.52減速器,1:12.36減速器,1:10.84減速器,1:9.56減速器,1:8.48減速器,1:7.24減速器

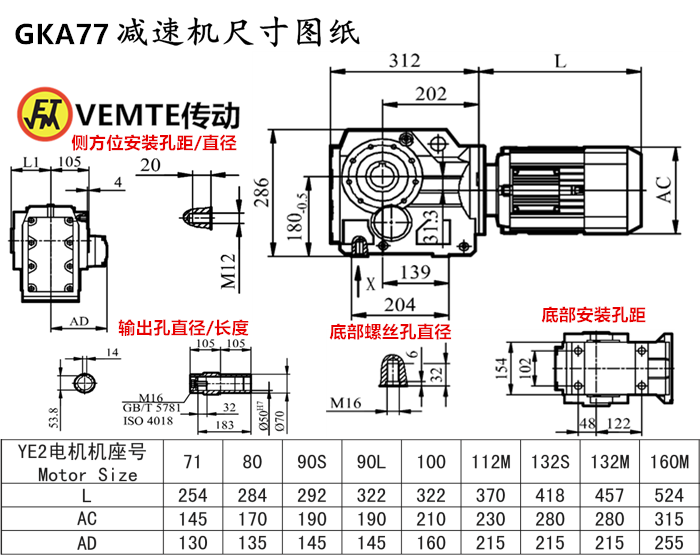

KA77減速機安裝尺寸：輸出孔+鍵Φ53.8（可定做），高286*寬200*長312

KA77傘齒輪減速電機輸出轉數：

7.3rpm減速機,7.8rpm減速機,9.1rpm減速機,10rpm減速機,11rpm減速機,12rpm減速機,14rpm減速機,16rpm減速機,18rpm減速機,19rpm減速機,22rpm減速機,24rpm減速機,27rpm減速機,31rpm減速機,35rpm減速機,36rpm減速機,40rpm減速機,45rpm減速機,48rpm減速機,55rpm減速機,61rpm減速機,69rpm減速機,78rpm減速機,88rpm減速機,104rpm減速機,113rpm減速機,129rpm減速機,146rpm減速機,165rpm減速機,193rpm減速機。（以上rpm/min數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

KA77減速機輸出扭矩：

1450Nm減速箱,1550Nm減速箱,1340Nm減速箱,1000Nm減速箱,990Nm減速箱,940Nm減速箱,890Nm減速箱,820Nm減速箱。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）

KA77減速機電機型號：KA77DV71S4,KA77DV80S4,KA77DV90S4,KA77DV100S4,KA77DV112S4,KA77DV132S4,KA77DV160S4,KA77DT71S4,KA77DT80S4,KA77DT90S4,KA77DT100S4,KA77DT112S4,KA77DT132S4,KA77DT160S4,KA77DRS71S4,KA77DRS80S4,KA77DRS90S4,KA77DRS100S4,KA77DRS112S4,KA77DRS132S4,KA77DRS160S4,KA77DRE71S4,KA77DRE80S4,KA77DRE90S4,KA77DRE100S4,KA77DRE112S4,KA77DRE132S4,KA77DRE160S4,KA77Y71S4,KA77Y80S4,KA77Y90S4,KA77Y100S4,KA77Y112S4,KA77Y132S4,KA77Y160S4,KA77DV71M4,KA77DV80M4,KA77DV90M4,KA77DV100M4,KA77DV112M4,KA77DV132M4,KA77DV160M4,KA77DT71M4,KA77DT80M4,KA77DT90M4,KA77DT100M4,KA77DT112M4,KA77DT132M4,KA77DT160M4,KA77DRS71M4,KA77DRS80M4,KA77DRS90M4,KA77DRS100M4,KA77DRS112M4,KA77DRS132M4,KA77DRS160M4,KA77DRE71M4,KA77DRE80M4,KA77DRE90M4,KA77DRE100M4,KA77DRE112M4,KA77DRE132M4,KA77DRE160M4,KA77Y71M4,KA77Y80M4,KA77Y90M4,KA77Y100M4,KA77Y112M4,KA77Y132M4,KA77Y160M4,KA77DV71L4,KA77DV80L4,KA77DV90L4,KA77DV100L4,KA77DV112L4,KA77DV132L4,KA77DV160L4,KA77DT71L4,KA77DT80L4,KA77DT90L4,KA77DT100L4,KA77DT112L4,KA77DT132L4,KA77DT160L4,KA77DRS71L4,KA77DRS80L4,KA77DRS90L4,KA77DRS100L4,KA77DRS112L4,KA77DRS132L4,KA77DRS160L4,KA77DRE71L4,KA77DRE80L4,KA77DRE90L4,KA77DRE100L4,KA77DRE112L4,KA77DRE132L4,KA77DRE160L4,KA77Y71L4,KA77Y80L4,KA77Y90L4,KA77Y100L4,KA77Y112L4,KA77Y132L4,KA77Y160L4

KA系列減速器KA77配各種電機實物圖：可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間

KA77減速機生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://xinjiangqinglv.cn/product/list-kaxiliejiansuji-cn.html

推薦類似型號：減速機KAF77
