KA1107錐齒輪減速電機功率：KA107Y0.18KW,KA107Y0.25KW,KA107Y0.37KW,KA107Y0.55KW,KA107Y0.75KW,KA107Y1.1KW,KA107Y1.5KW,KA107Y2.2KW,KA107Y3KW,KA107Y4KW,KA107Y5.5KW,KA107Y7.5KW,KA107Y11KW,KA107Y15KW,KA107Y18.5KW,KA107Y22KW,KA107Y30KW,KA107Y37KW,KA107Y45KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

KA107減速機減速比：

1:7.35減速器,1:8.69減速器,1:9.94減速器,1:11.73減速器,1:13.43減速器,1:14.64減速器,1:16.75減速器,1:19.74減速器,1:22.62減速器,1:26.32減速器,1:29減速器,1:31.28減速器,1:32.69減速器,1:37減速器,1:42.33減速器,1:49.9減速器,1:57.17減速器,1:66.52減速器,1:73.3減速器,1:82.61減速器,1:90.96減速器,1:100.75減速器,1:112.41減速器,1:121.46減速器,1:143.47減速器

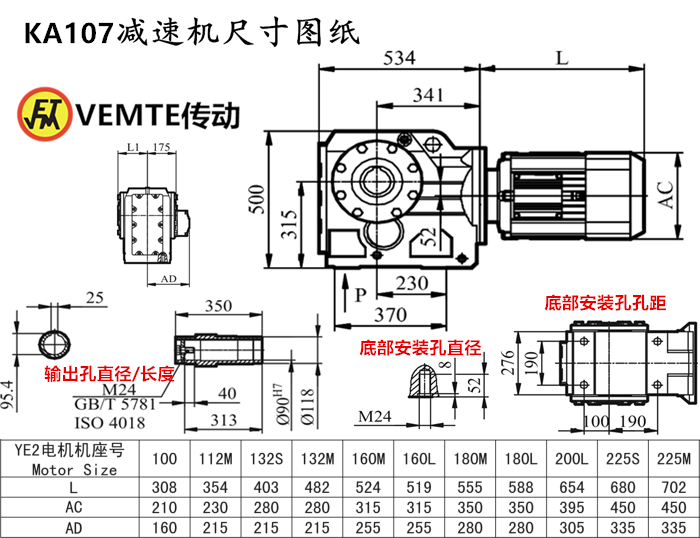

KA107電機減速機安裝尺寸：輸出孔+鍵Φ95.4（可定做），高500*寬340*長539

KA107減速機輸出轉數：

9.8rpm減速機,12rpm減速機,14rpm減速機,15rpm減速機,17rpm減速機,19rpm減速機,21rpm減速機,24rpm減速機,28rpm減速機,33rpm減速機,38rpm減速機,43rpm減速機,45rpm減速機,48rpm減速機,53rpm減速機,62rpm減速機,71rpm減速機,84rpm減速機,96rpm減速機,104rpm減速機,119rpm減速機,141rpm減速機,161rpm減速機,190rpm減速機。（以上rpm/min數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

KA107減速機輸出扭矩：直角減速機

3600Nm減速箱,4070Nm減速箱,4190Nm減速箱,4300Nm減速箱,6800Nm減速箱,6890Nm減速箱,7050Nm減速箱,7200Nm減速箱,7360Nm減速箱,7840Nm減速箱,8000Nm減速箱。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）

KA系列減速器KA107減速機電機型號：KA107DV100S4,KA107DV112S4,KA107DV132S4,KA107DV160S4,KA107DV180S4,KA107DV200S4,KA107DV225S4,KA107DT100S4,KA107DT112S4,KA107DT132S4,KA107DT160S4,KA107DT180S4,KA107DT200S4,KA107DT225S4,KA107DRS100S4,KA107DRS112S4,KA107DRS132S4,KA107DRS160S4,KA107DRS180S4,KA107DRS200S4,KA107DRS225S4,KA107DRE100S4,KA107DRE112S4,KA107DRE132S4,KA107DRE160S4,KA107DRE180S4,KA107DRE200S4,KA107DRE225S4,KA107Y100S4,KA107Y112S4,KA107Y132S4,KA107Y160S4,KA107Y180S4,KA107Y200S4,KA107Y225S4,KA107DV100M4,KA107DV112M4,KA107DV132M4,KA107DV160M4,KA107DV180M4,KA107DV200M4,KA107DV225M4,KA107DT100M4,KA107DT112M4,KA107DT132M4,KA107DT160M4,KA107DT180M4,KA107DT200M4,KA107DT225M4,KA107DRS100M4,KA107DRS112M4,KA107DRS132M4,KA107DRS160M4,KA107DRS180M4,KA107DRS200M4,KA107DRS225M4,KA107DRE100M4,KA107DRE112M4,KA107DRE132M4,KA107DRE160M4,KA107DRE180M4,KA107DRE200M4,KA107DRE225M4,KA107Y100M4,KA107Y112M4,KA107Y132M4,KA107Y160M4,KA107Y180M4,KA107Y200M4,KA107Y225M4,KA107DV100L4,KA107DV112L4,KA107DV132L4,KA107DV160L4,KA107DV180L4,KA107DV200L4,KA107DV225L4,KA107DT100L4,KA107DT112L4,KA107DT132L4,KA107DT160L4,KA107DT180L4,KA107DT200L4,KA107DT225L4,KA107DRS100L4,KA107DRS112L4,KA107DRS132L4,KA107DRS160L4,KA107DRS180L4,KA107DRS200L4,KA107DRS225L4,KA107DRE100L4,KA107DRE112L4,KA107DRE132L4,KA107DRE160L4,KA107DRE180L4,KA107DRE200L4,KA107DRE225L4,KA107Y100L4,KA107Y112L4,KA107Y132L4,KA107Y160L4,KA107Y180L4,KA107Y200L4,KA107Y225L4

KA107減速機配各種電機實物圖：可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間

KA107減速機生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://xinjiangqinglv.cn/product/list-kaxiliejiansuji-cn.html

推薦類似型號：減速機KAF107
