減速機SAF97電機功率：SAF97Y0.12KW,SAF97Y0.18KW,SAF97Y0.25KW,SAF97Y0.37KW,SAF97Y0.55KW,SAF97Y0.75KW,SAF97Y1.1KW,SAF97Y1.5KW,SAF97Y2.2KW,SAF97Y3KW,SAF97Y4KW,SAF97Y5.5KW,SAF97Y7.5KW,SAF97Y11KW,SAF97Y15KW,SAF97Y18.5KW,SAF97Y22KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。蝸輪蝸桿減速電機

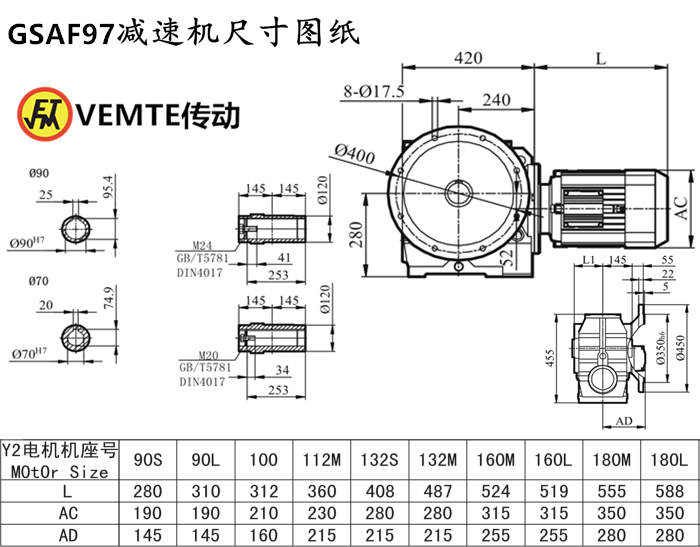

減速機SAF97安裝尺寸：輸出孔+鍵Φ95.9（可定做），高455*寬350（帶輸出法蘭）*長420

渦輪減速電機SAF97減速比：

減速箱286.4比,減速箱262.22比,減速箱231.67比,減速箱196.52比,減速箱180.95比,減速箱161.74比,減速箱145.6比,減速箱131.85比,減速箱116.92比,減速箱105.71比,減速箱89.6比,減速箱80.85比,減速箱78.26比,減速箱71.43比,減速箱65.45比,減速箱60.59比,減速箱55.79比,減速箱49.87比,減速箱44.89比,減速箱40.65比,減速箱36.05比,減速箱32.6比,減速箱27.63比,減速箱26.39比,減速箱24.13比,減速箱23.59比,減速箱21.23比,減速箱19.23比,減速箱17.05比,減速箱15.42比,減速箱13.07比,減速箱11.41比,減速箱9.55比,減速箱8.26比

減速機SAF97輸出轉數：

4.9轉減速器,5.3轉減速器,6轉減速器,7.1轉減速器,7.7轉減速器,8.7轉減速器,9.6轉減速器,11轉減速器,12轉減速器,13轉減速器,16轉減速器,17轉減速器,18轉減速器,20轉減速器,21轉減速器,23轉減速器,25轉減速器,28轉減速器,31轉減速器,34轉減速器,39轉減速器,43轉減速器,51轉減速器,53轉減速器,58轉減速器,59轉減速器,66轉減速器,73轉減速器,82轉減速器,91轉減速器,107轉減速器,123轉減速器,147轉減速器,169轉減速器。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

減速機SAF97輸出扭矩：

減速機1770Nm,減速機2040Nm,減速機2210Nm,減速機2330Nm,減速機2470Nm,減速機2570Nm,減速機2600Nm,減速機2870Nm,減速機2900Nm,減速機3010Nm,減速機3080Nm,減速機3200Nm,減速機3230Nm,減速機3240Nm,減速機3300Nm,減速機3300Nm,減速機3440Nm,減速機3510Nm,減速機3650Nm,減速機3730Nm,減速機3840Nm,減速機3920Nm,渦輪減速箱4000Nm。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速器型號加大,或者兩個減速機組合使用）

減速機SAF97電機型號：SAF97DV80S4,SAF97DV90S4,SAF97DV100S4,SAF97DV112S4,SAF97DV132S4,SAF97DV160S4,SAF97DV180S4,SAF97DV200S4,SAF97DT80S4,SAF97DT90S4,SAF97DT100S4,SAF97DT112S4,SAF97DT132S4,SAF97DT160S4,SAF97DT180S4,SAF97DT200S4,SAF97DRE80S4,SAF97DRE90S4,SAF97DRE100S4,SAF97DRE112S4,SAF97DRE132S4,SAF97DRE160S4,SAF97DRE180S4,SAF97DRE200S4,SAF97DRS80S4,SAF97DRS90S4,SAF97DRS100S4,SAF97DRS112S4,SAF97DRS132S4,SAF97DRS160S4,SAF97DRS180S4,SAF97DRS200S4,SAF97Y80S4,SAF97Y90S4,SAF97Y100S4,SAF97Y112S4,SAF97Y132S4,SAF97Y160S4,SAF97Y180S4,SAF97Y200S4,SAF97DV80M4,SAF97DV90M4,SAF97DV100M4,SAF97DV112M4,SAF97DV132M4,SAF97DV160M4,SAF97DV180M4,SAF97DV200M4,SAF97DT80M4,SAF97DT90M4,SAF97DT100M4,SAF97DT112M4,SAF97DT132M4,SAF97DT160M4,SAF97DT180M4,SAF97DT200M4,SAF97DRE80M4,SAF97DRE90M4,SAF97DRE100M4,SAF97DRE112M4,SAF97DRE132M4,SAF97DRE160M4,SAF97DRE180M4,SAF97DRE200M4,SAF97DRS80M4,SAF97DRS90M4,SAF97DRS100M4,SAF97DRS112M4,SAF97DRS132M4,SAF97DRS160M4,SAF97DRS180M4,SAF97DRS200M4,SAF97Y80M4,SAF97Y90M4,SAF97Y100M4,SAF97Y112M4,SAF97Y132M4,SAF97Y160M4,SAF97Y180M4,SAF97Y200M4,SAF97DV80L4,SAF97DV90L4,SAF97DV100L4,SAF97DV112L4,SAF97DV132L4,SAF97DV160L4,SAF97DV180L4,SAF97DV200L4,SAF97DT80L4,SAF97DT90L4,SAF97DT100L4,SAF97DT112L4,SAF97DT132L4,SAF97DT160L4,SAF97DT180L4,SAF97DT200L4,SAF97DRE80L4,SAF97DRE90L4,SAF97DRE100L4,SAF97DRE112L4,SAF97DRE132L4,SAF97DRE160L4,SAF97DRE180L4,SAF97DRE200L4,SAF97DRS80L4,SAF97DRS90L4,SAF97DRS100L4,SAF97DRS112L4,SAF97DRS132L4,SAF97DRS160L4,SAF97DRS180L4,SAF97DRS200L4,SAF97Y80L4,SAF97Y90L4,SAF97Y100L4,SAF97Y112L4,SAF97Y132L4,SAF97Y160L4,SAF97Y180L4,SAF97Y200L4

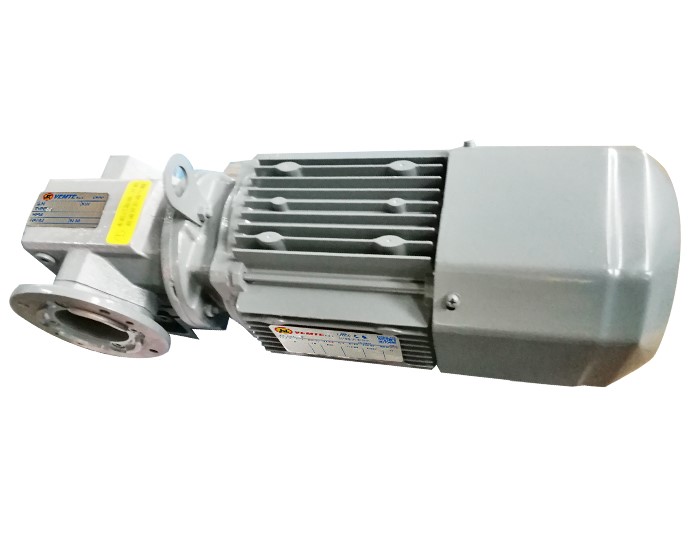

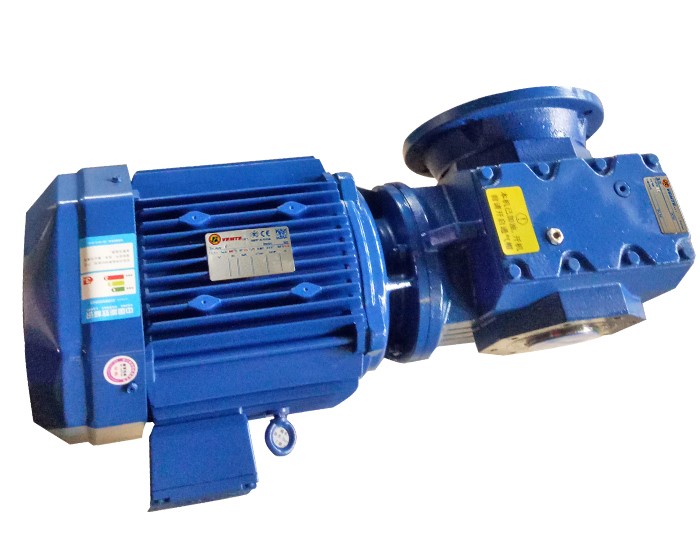

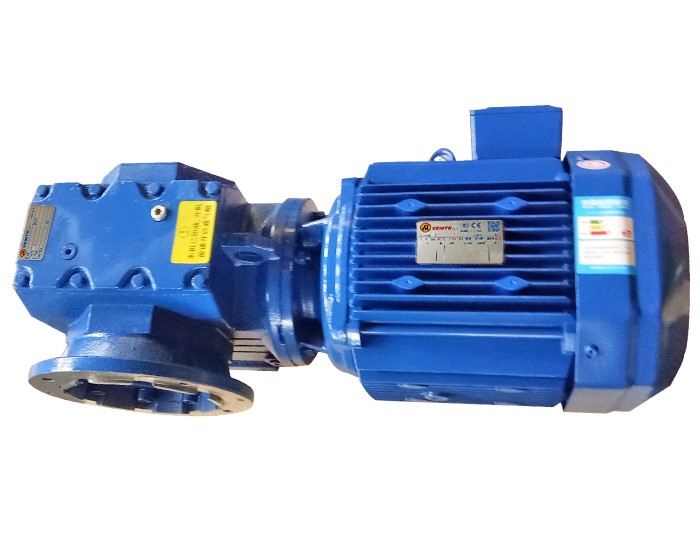

渦輪伺服減速器SAF97配各種電機實物圖：

減速機SAF97生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://xinjiangqinglv.cn/product/list-safxiliejiansuji-cn.html

推薦類似型號：S97減速機
