減速機S87電機功率：S87Y0.12KW,S87Y0.18KW,S87Y0.25KW,S87Y0.37KW,S87Y0.55KW,S87Y0.75KW,S87Y1.1KW,S87Y1.5KW,S87Y2.2KW,S87Y3KW,S87Y4KW,S87Y5.5KW,S87Y7.5KW,S87Y11KW,S87Y15KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

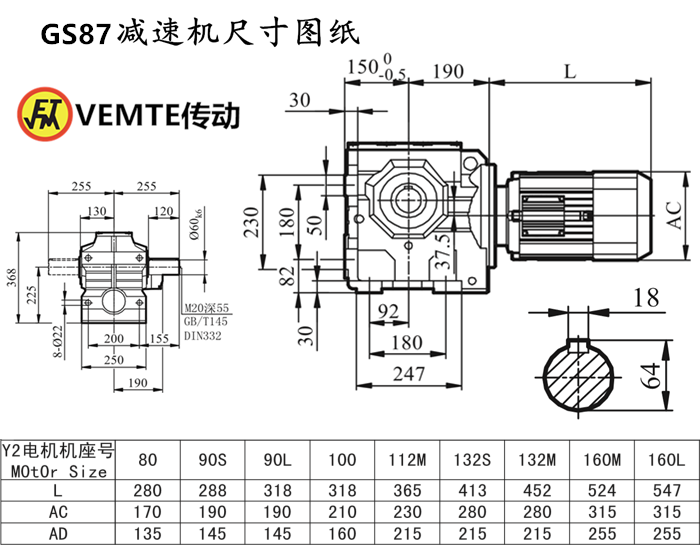

減速機S87安裝尺寸：輸出軸+鍵Φ64（可定做），高368*寬390（帶輸出軸）*長340

自鎖減速機S87減速比：減速器1：288,減速器1:258.18,減速器1:222.4,減速器1:202.96,減速器1:180,減速器1:151.3,減速器1:139.05,減速器1:123.48,減速器1:110.4,減速器1:99.26,減速器1:91.2,減速器1:86.15,減速器1:81.76,減速器1:77.14,減速器1:70.43,減速器1:64.27,減速器1:64,減速器1:57,減速器1:47.91,減速器1:44.03,減速器1:39.1,減速器1:34.96,減速器1:31.43,減速器1:27.28,減速器1:25.5,減速器1:24.43,減速器1:21.43,減速器1:20.27,減速器1:19.7,減速器1:17.49,減速器1:15.64,減速器1:14.06,減速器1:12.21,減速器1:10.93,減速器1:9.07,減速器1:7.8

減速機S87輸出轉數：4.9rpm/min減速機,5.4rpm/min減速機,6.3rpm/min減速機,6.9rpm/min減速機,7.8rpm/min減速機,9.3rpm/min減速機,10rpm/min減速機,11rpm/min減速機,14rpm/min減速機,15rpm/min減速機,16rpm/min減速機,17rpm/min減速機,18rpm/min減速機,20rpm/min減速機,22rpm/min減速機,25rpm/min減速機,29rpm/min減速機,32rpm/min減速機,36rpm/min減速機,40rpm/min減速機,45rpm/min減速機,51rpm/min減速機,55rpm/min減速機,57rpm/min減速機,65rpm/min減速機,69rpm/min減速機,71rpm/min減速機,80rpm/min減速機,90rpm/min減速機,100rpm/min減速機,115rpm/min減速機,128rpm/min減速機,154rpm/min減速機,178rpm/min減速機。（以上rpm/min數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

減速機S87輸出扭矩：減速箱2280N.m減速箱,2260N.m減速箱,2210N.m減速箱,2150N.m減速箱,2100N.m減速箱,2060N.m減速箱,2000N.m減速箱,1960N.m減速箱,1510N.m減速箱,1880N.m減速箱,1600N.m減速箱,1820N.m減速箱,1700N.m減速箱,1240N.m減速箱,1140N.m減速箱,1010N.m渦輪減速箱。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）

減速機S87電機型號：S87DV71S4,S87DV80S4,S87DV90S4,S87DV100S4,S87DV112S4,S87DV132S4,S87DV160S4,S87DT71S4,S87DT80S4,S87DT90S4,S87DT100S4,S87DT112S4,S87DT132S4,S87DT160S4,S87DRE71S4,S87DRE80S4,S87DRE90S4,S87DRE100S4,S87DRE112S4,S87DRE132S4,S87DRE160S4,S87DRS71S4,S87DRS80S4,S87DRS90S4,S87DRS100S4,S87DRS112S4,S87DRS132S4,S87DRS160S4,S87Y71S4,S87Y80S4,S87Y90S4,S87Y100S4,S87Y112S4,S87Y132S4,S87Y160S4,S87DV71M4,S87DV80M4,S87DV90M4,S87DV100M4,S87DV112M4,S87DV132M4,S87DV160M4,S87DT71M4,S87DT80M4,S87DT90M4,S87DT100M4,S87DT112M4,S87DT132M4,S87DT160M4,S87DRE71M4,S87DRE80M4,S87DRE90M4,S87DRE100M4,S87DRE112M4,S87DRE132M4,S87DRE160M4,S87DRS71M4,S87DRS80M4,S87DRS90M4,S87DRS100M4,S87DRS112M4,S87DRS132M4,S87DRS160M4,S87Y71M4,S87Y80M4,S87Y90M4,S87Y100M4,S87Y112M4,S87Y132M4,S87Y160M4,S87DV71L4,S87DV80L4,S87DV90L4,S87DV100L4,S87DV112L4,S87DV132L4,S87DV160L4,S87DT71L4,S87DT80L4,S87DT90L4,S87DT100L4,S87DT112L4,S87DT132L4,S87DT160L4,S87DRE71L4,S87DRE80L4,S87DRE90L4,S87DRE100L4,S87DRE112L4,S87DRE132L4,S87DRE160L4,S87DRS71L4,S87DRS80L4,S87DRS90L4,S87DRS100L4,S87DRS112L4,S87DRS132L4,S87DRS160L4,S87Y71L4,S87Y80L4,S87Y90L4,S87Y100L4,S87Y112L4,S87Y132L4,S87Y160L4

渦輪伺服減速器S87配各種電機的實物圖：

減速機S87生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://xinjiangqinglv.cn/product/list-sxiliejiansuji-cn.html

推薦類似型號：SF87減速機
