減速機S67電機功率：S67Y0.12KW,S67Y0.18KW,S67Y0.25KW,S67Y0.37KW,S67Y0.55KW,S67Y0.75KW,S67Y1.1KW,S67Y1.5KW,S67Y2.2KW,S67Y3KW,S67Y4KW,S67Y5.5KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

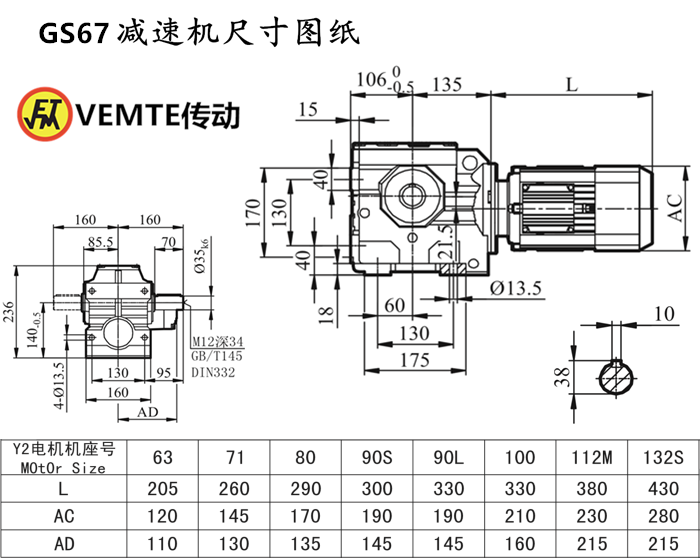

蝸輪蝸桿減速機伺服電機S67安裝尺寸：輸出軸+鍵Φ38（可定做），高236*寬250（帶輸出軸）*長241

蝸輪蝸桿減速器S67減速比：減速器1:217.41,減速器1:190.11,減速器1:180.6,減速器1:158.45,減速器1:134.4,減速器1:121.33,減速器1:106.75,減速器1:100.8,減速器1:85.83,減速器1:78,減速器1:75.06,減速器1:67.57,減速器1:65.63,減速器1:62.35,減速器1:58.8,減速器1:54.7,減速器1:46.4,減速器1:41.89,減速器1:36.85,減速器1:34.8,減速器1:29.63,減速器1:26.93,減速器1:24.44,減速器1:23.33,減速器1:23.22,減速器1:20.37,減速器1:20.3,減速器1:17.28,減速器1:15.60,減速器1:13.73,減速器1:12.96,減速器1:11.03,減速器1:10.03,減速器1:8.69,減速器1:7.56

減速機S67輸出轉數：6.4rpm/min減速機,7.4rpm/min減速機,7.8rpm/min減速機,8.8rpm/min減速機,10rpm/min減速機,12rpm/min減速機,13rpm/min減速機,14rpm/min減速機,16rpm/min減速機,18rpm/min減速機,19rpm/min減速機,21rpm/min減速機,22rpm/min減速機,24rpm/min減速機,26rpm/min減速機,30rpm/min減速機,33rpm/min減速機,38rpm/min減速機,40rpm/min減速機,47rpm/min減速機,52rpm/min減速機,57rpm/min減速機,60rpm/min減速機,69rpm/min減速機,81rpm/min減速機,90rpm/min減速機,102rpm/min減速機,108rpm/min減速機,127rpm/min減速機,140rpm/min減速機,161rpm/min減速機,185rpm/min減速機。（以上rpm/min數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

渦輪減速機S67輸出扭矩：240N.m減速箱,295N.m減速箱,335N.m減速箱,340N.m減速箱,425N.m減速箱,480N.m減速箱,500N.m減速箱,520N.m減速箱。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）

減速機S67電機型號：S67DV63S4,S67DV71S4,S67DV80S4,S67DV90S4,S67DV100S4,S67DV112S4,S67DV132S4,S67DT63S4,S67DT71S4,S67DT80S4,S67DT90S4,S67DT100S4,S67DT112S4,S67DT132S4,S67DRE63S4,S67DRE71S4,S67DRE80S4,S67DRE90S4,S67DRE100S4,S67DRE112S4,S67DRE132S4,S67DRS63S4,S67DRS71S4,S67DRS80S4,S67DRS90S4,S67DRS100S4,S67DRS112S4,S67DRS132S4,S67Y63S4,S67Y71S4,S67Y80S4,S67Y90S4,S67Y100S4,S67Y112S4,S67Y132S4,S67DV63M4,S67DV71M4,S67DV80M4,S67DV90M4,S67DV100M4,S67DV112M4,S67DV132M4,S67DT63M4,S67DT71M4,S67DT80M4,S67DT90M4,S67DT100M4,S67DT112M4,S67DT132M4,S67DRE63M4,S67DRE71M4,S67DRE80M4,S67DRE90M4,S67DRE100M4,S67DRE112M4,S67DRE132M4,S67DRS63M4,S67DRS71M4,S67DRS80M4,S67DRS90M4,S67DRS100M4,S67DRS112M4,S67DRS132M4,S67Y63M4,S67Y71M4,S67Y80M4,S67Y90M4,S67Y100M4,S67Y112M4,S67Y132M4,S67DV63L4,S67DV71L4,S67DV80L4,S67DV90L4,S67DV100L4,S67DV112L4,S67DV132L4,S67DT63L4,S67DT71L4,S67DT80L4,S67DT90L4,S67DT100L4,S67DT112L4,S67DT132L4,S67DRE63L4,S67DRE71L4,S67DRE80L4,S67DRE90L4,S67DRE100L4,S67DRE112L4,S67DRE132L4,S67DRS63L4,S67DRS71L4,S67DRS80L4,S67DRS90L4,S67DRS100L4,S67DRS112L4,S67DRS132L4,S67Y63L4,S67Y71L4,S67Y80L4,S67Y90L4,S67Y100L4,S67Y112L4,S67Y132L4,

減速機S67配各種電機的實物圖：

減速機S67生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://xinjiangqinglv.cn/product/list-sxiliejiansuji-cn.html

推薦類似型號：SF67減速機
