減速機RXF87電機功率：

RXF87Y3KW,RXF87Y4KW,RXF87Y5.5KW,RXF87Y7.5KW,RXF87Y11KW,RXF87Y15KW,RXF87Y18.5KW,RXF87Y22KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。齒輪減速器

減速機RXF87減速比：

減速箱1.39比,減速箱1.6比,減速箱1.93比,減速箱2.15比,減速箱2.48比,減速箱2.76比,減速箱3.09比,減速箱3.48比,減速箱3.78比,減速箱4.5比,減速箱5.07比,減速箱5.56比,減速箱6.45比,減速箱7.2比,減速箱7.63比,減速箱8.65比

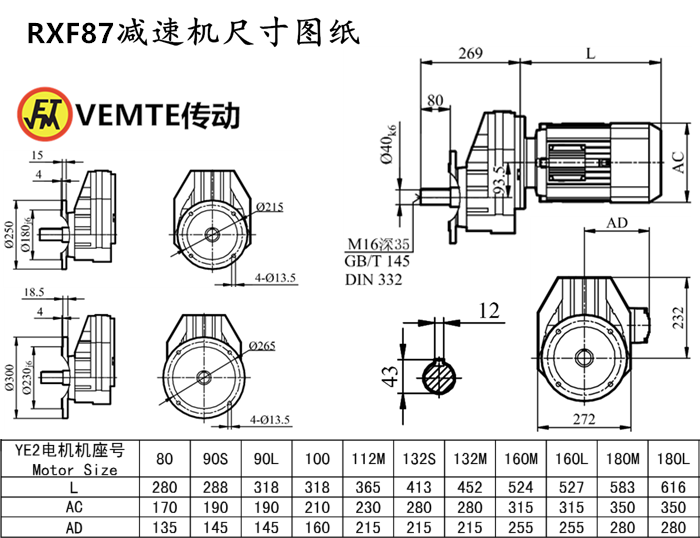

減速機RXF87安裝尺寸：輸出軸Φ40+鍵3（可定做），高332*寬272*長269（帶輸出軸）

GRXF系列齒輪減速機RXF87輸出轉數：

162rpm/min減速器,183rpm/min減速器,194rpm/min減速器,217rpm/min減速器,252rpm/min減速器,276rpm/min減速器,311rpm/min減速器,370rpm/min減速器,402rpm/min減速器,453rpm/min減速器,507rpm/min減速器,565rpm/min減速器,651rpm/min減速器,725rpm/min減速器,875rpm/min減速器,1005rpm/min減速器。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

減速機RXF87輸出扭矩：

減速機49N.m,減速機139N.m,減速機140N.m,減速機192N.m,減速機225N.m,減速機250N.m,減速機290N.m,減速機290N.m,減速機305N.m,減速機315N.m,減速機355N.m,減速機385N.m,減速機405N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速器型號加大,或者兩個減速機組合使用）

硬齒面減速機RXF87電機型號：RXF87DV71S4,RXF87DV80S4,RXF87DV90S4,RXF87DV100S4,RXF87DV112S4,RXF87DV132S4,RXF87DV160S4,RXF87DV180S4,RXF87DV200S4,RXF87DT71S4,RXF87DT80S4,RXF87DT90S4,RXF87DT100S4,RXF87DT112S4,RXF87DT132S4,RXF87DT160S4,RXF87DT180S4,RXF87DT200S4,RXF87DRS71S4,RXF87DRS80S4,RXF87DRS90S4,RXF87DRS100S4,RXF87DRS112S4,RXF87DRS132S4,RXF87DRS160S4,RXF87DRS180S4,RXF87DRS200S4,RXF87DRE71S4,RXF87DRE80S4,RXF87DRE90S4,RXF87DRE100S4,RXF87DRE112S4,RXF87DRE132S4,RXF87DRE160S4,RXF87DRE180S4,RXF87DRE200S4,RXF87Y71S4,RXF87Y80S4,RXF87Y90S4,RXF87Y100S4,RXF87Y112S4,RXF87Y132S4,RXF87Y160S4,RXF87Y180S4,RXF87Y200S4,RXF87DV71M4,RXF87DV80M4,RXF87DV90M4,RXF87DV100M4,RXF87DV112M4,RXF87DV132M4,RXF87DV160M4,RXF87DV180M4,RXF87DV200M4,RXF87DT71M4,RXF87DT80M4,RXF87DT90M4,RXF87DT100M4,RXF87DT112M4,RXF87DT132M4,RXF87DT160M4,RXF87DT180M4,RXF87DT200M4,RXF87DRS71M4,RXF87DRS80M4,RXF87DRS90M4,RXF87DRS100M4,RXF87DRS112M4,RXF87DRS132M4,RXF87DRS160M4,RXF87DRS180M4,RXF87DRS200M4,RXF87DRE71M4,RXF87DRE80M4,RXF87DRE90M4,RXF87DRE100M4,RXF87DRE112M4,RXF87DRE132M4,RXF87DRE160M4,RXF87DRE180M4,RXF87DRE200M4,RXF87Y71M4,RXF87Y80M4,RXF87Y90M4,RXF87Y100M4,RXF87Y112M4,RXF87Y132M4,RXF87Y160M4,RXF87Y180M4,RXF87Y200M4,RXF87DV71L4,RXF87DV80L4,RXF87DV90L4,RXF87DV100L4,RXF87DV112L4,RXF87DV132L4,RXF87DV160L4,RXF87DV180L4,RXF87DV200L4,RXF87DT71L4,RXF87DT80L4,RXF87DT90L4,RXF87DT100L4,RXF87DT112L4,RXF87DT132L4,RXF87DT160L4,RXF87DT180L4,RXF87DT200L4,RXF87DRS71L4,RXF87DRS80L4,RXF87DRS90L4,RXF87DRS100L4,RXF87DRS112L4,RXF87DRS132L4,RXF87DRS160L4,RXF87DRS180L4,RXF87DRS200L4,RXF87DRE71L4,RXF87DRE80L4,RXF87DRE90L4,RXF87DRE100L4,RXF87DRE112L4,RXF87DRE132L4,RXF87DRE160L4,RXF87DRE180L4,RXF87DRE200L4,RXF87Y71L4,RXF87Y80L4,RXF87Y90L4,RXF87Y100L4,RXF87Y112L4,RXF87Y132L4,RXF87Y160L4,RXF87Y180L4,RXF87Y200L4,

RXF87齒輪減速機配各種電機實物圖：

減速機RXF87生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://xinjiangqinglv.cn/product/list-rxfxiliejiansuji-cn.html

推薦類似型號：R27減速機
