減速機K77電機功率：

K77Y0.37KW,K77Y0.55KW,K77Y0.75KW,K77Y1.1KW,K77Y1.5KW,K77Y2.2KW,K77Y3KW,K77Y4KW,K77Y5.5KW,K77Y7.5KW,K77Y11KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

直角減速機K77減速比：

減速器1:192.18,減速器1:179.37,減速器1:154.02,減速器1:135.28,減速器1:128.52,減速器1:113.56,減速器1:97.05,減速器1:88.97,減速器1:78.07,減速器1:73.99,減速器1:64.75,減速器1:58.34,減速器1:51.18,減速器1:45.16,減速器1:40.04,減速器1:38.39,減速器1:35.2,減速器1:30.89,減速器1:29.27,減速器1:25.62,減速器1:23.08,減速器1:20.25,減速器1:17.87,減速器1:15.84,減速器1:13.52,減速器1:12.36,減速器1:10.84,減速器1:9.56,減速器1:8.48,減速器1:7.24

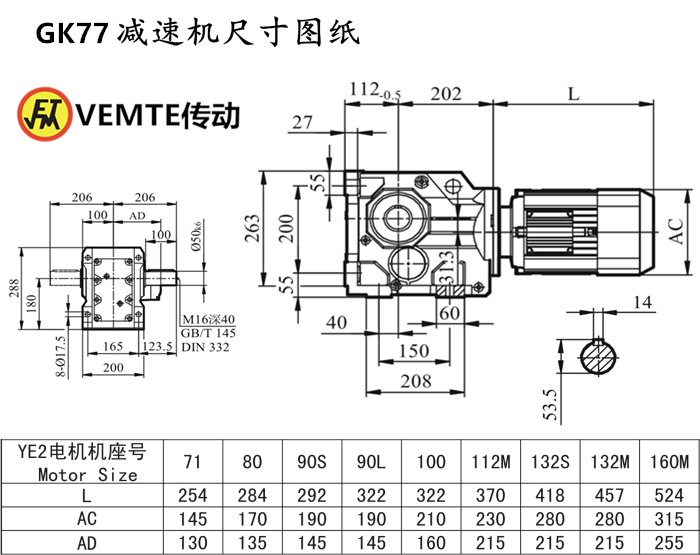

減速機K77安裝尺寸：輸出軸+鍵Φ53.5（可定做），高288*寬306（帶輸出軸）*長314

減速機K77輸出轉數：K系列減速機

7.3rpm/min減速機,7.8rpm/min減速機,9.1rpm/min減速機,10rpm/min減速機,11rpm/min減速機,12rpm/min減速機,14rpm/min減速機,16rpm/min減速機,18rpm/min減速機,19rpm/min減速機,22rpm/min減速機,24rpm/min減速機,27rpm/min減速機,31rpm/min減速機,35rpm/min減速機,36rpm/min減速機,40rpm/min減速機,45rpm/min減速機,48rpm/min減速機,55rpm/min減速機,61rpm/min減速機,69rpm/min減速機,78rpm/min減速機,88rpm/min減速機,104rpm/min減速機,113rpm/min減速機,129rpm/min減速機,146rpm/min減速機,165rpm/min減速機,193rpm/min減速機。（以上rpm/min數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

減速機K77輸出扭矩：

1450N.m減速箱,1550N.m減速箱,1340N.m減速箱,1000N.m減速箱,990N.m減速箱,940N.m減速箱,890N.m減速箱,820N.m減速箱。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）

轉角減速器K77電機型號：K77DV71S4,K77DV80S4,K77DV90S4,K77DV100S4,K77DV112S4,K77DV132S4,K77DV160S4,K77DT71S4,K77DT80S4,K77DT90S4,K77DT100S4,K77DT112S4,K77DT132S4,K77DT160S4,K77DRS71S4,K77DRS80S4,K77DRS90S4,K77DRS100S4,K77DRS112S4,K77DRS132S4,K77DRS160S4,K77DRE71S4,K77DRE80S4,K77DRE90S4,K77DRE100S4,K77DRE112S4,K77DRE132S4,K77DRE160S4,K77Y71S4,K77Y80S4,K77Y90S4,K77Y100S4,K77Y112S4,K77Y132S4,K77Y160S4,K77DV71M4,K77DV80M4,K77DV90M4,K77DV100M4,K77DV112M4,K77DV132M4,K77DV160M4,K77DT71M4,K77DT80M4,K77DT90M4,K77DT100M4,K77DT112M4,K77DT132M4,K77DT160M4,K77DRS71M4,K77DRS80M4,K77DRS90M4,K77DRS100M4,K77DRS112M4,K77DRS132M4,K77DRS160M4,K77DRE71M4,K77DRE80M4,K77DRE90M4,K77DRE100M4,K77DRE112M4,K77DRE132M4,K77DRE160M4,K77Y71M4,K77Y80M4,K77Y90M4,K77Y100M4,K77Y112M4,K77Y132M4,K77Y160M4,K77DV71L4,K77DV80L4,K77DV90L4,K77DV100L4,K77DV112L4,K77DV132L4,K77DV160L4,K77DT71L4,K77DT80L4,K77DT90L4,K77DT100L4,K77DT112L4,K77DT132L4,K77DT160L4,K77DRS71L4,K77DRS80L4,K77DRS90L4,K77DRS100L4,K77DRS112L4,K77DRS132L4,K77DRS160L4,K77DRE71L4,K77DRE80L4,K77DRE90L4,K77DRE100L4,K77DRE112L4,K77DRE132L4,K77DRE160L4,K77Y71L4,K77Y80L4,K77Y90L4,K77Y100L4,K77Y112L4,K77Y132L4,K77Y160L4直角減速電機

減速機K77配各種電機的實物圖：可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間

減速機K77生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://xinjiangqinglv.cn/product/list-kxiliejiansuji-cn.html

推薦類似型號：KF77減速機
