F27齒輪減速電機功率：

F27Y0.12KW,F27Y0.18KW,F27Y0.25KW,F27Y0.37KW,F27Y0.55KW,F27Y0.75KW,F27Y1.1KW,F27Y1.5KW,F27Y2.2KW電機.（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

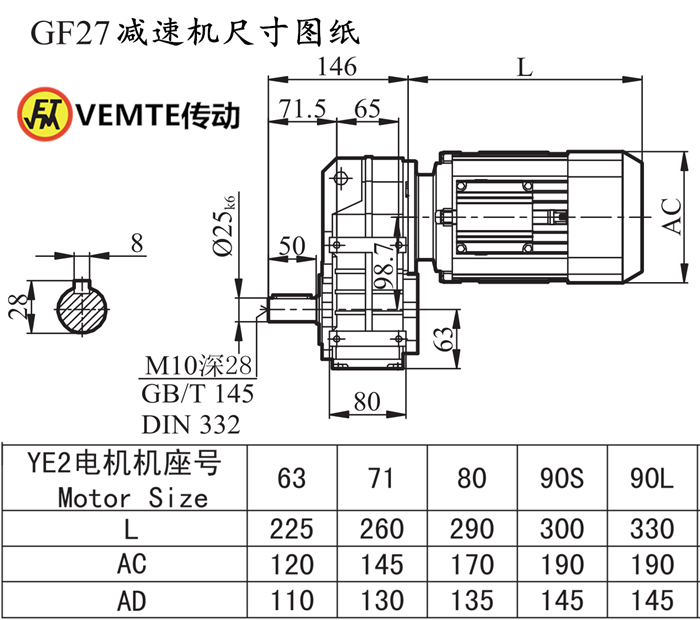

F27減速機安裝尺寸：輸出軸Φ25+鍵3（可定做），高226*寬150*長146（帶輸出軸）

F27平行軸減速機減速比：

1:140減速機,1:129減速機,1:109減速機,1:94減速機,1:88減速機,1:77減速機,1:72減速機,1:63減速機,1:56減速機,1:50減速機,1:46減速機,1:40減速機,1:38減速機,1:33減速機,1:29減速機,1:27減速機,1:23減速機,1:20減速機,1:18減速機,1:16減速機,1:13減速機,1:12減速機,1:10減速機,1:9減速機,1:8減速機,1:6減速機,1:5減速機,1:4減速機。

F27減速機輸出轉數：

9轉減速機,11轉減速機,13轉減速機,15轉減速機,16轉減速機,18轉減速機,19轉減速機,22轉減速機,25轉減速機,28轉減速機,30轉減速機,34轉減速機,37轉減速機,41轉減速機,47轉減速機,52轉減速機,60轉減速機,69轉減速機,74轉減速機,86轉減速機,101轉減速機,113轉減速機,133轉減速機,142轉減速機,149轉減速機,172轉減速機,203轉減速機,227轉減速機,266轉減速機,284轉減速機,337轉減速機。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

F27減速機輸出扭矩：

130N.m減速機,123N.m減速機,114N.m減速機,109N.m減速機,100N.m減速機,96N.m減速機,87N.m減速機。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大）

F系列減速機F27型號：F27DRE100M4,F27DRE63M4,F27DRE71M4,F27DRE80M4,F27DRE90M4,F27DRS100M4,F27DRS63M4,F27DRS71M4,F27DRS80M4,F27DRS90M4,F27DT100M4,F27DT63M4,F27DT71M4,F27DT80M4,F27DT90M4,F27DV100M4,F27DV63M4,F27DV71M4,F27DV80M4,F27DV90M4,F27Y100M4,F27Y63M4,F27Y71M4,F27Y80M4,F27Y90M4,,F27DRE100L4,F27DRE63L4,F27DRE71L4,F27DRE80L4,F27DRE90L4,F27DRS100L4,F27DRS63L4,F27DRS71L4,F27DRS80L4,F27DRS90L4,F27DT100L4,F27DT63L4,F27DT71L4,F27DT80L4,F27DT90L4,F27DV100L4,F27DV63L4,F27DV71L4,F27DV80L4,F27DV90L4,F27Y100L4,F27Y63L4,F27Y71L4,F27Y80L4,F27Y90L4,,F27DRE100S4,F27DRE63S4,F27DRE71S4,F27DRE80S4,F27DRE90S4,F27DRS100S4,F27DRS63S4,F27DRS71S4,F27DRS80S4,F27DRS90S4,F27DT100S4,F27DT63S4,F27DT71S4,F27DT80S4,F27DT90S4,F27DV100S4,F27DV63S4,F27DV71S4,F27DV80S4,F27DV90S4,F27Y100S4,F27Y63S4,F27Y71S4,F27Y80S4,F27Y90S4。

F27減速機配各種電機的實物圖：

F27減速機生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://xinjiangqinglv.cn/product/list-fxiliejiansuji-cn.html F系列減速電機

推薦類似型號：減速機FF27
